17:50 Many wastewater projects struggle with limited space, strict discharge rules, and unstable water quality. Traditional systems may need large tanks and extra treatment steps. An MBR membrane bioreactor offers a compact way to treat wastewater with stable membrane filtration.
An MBR membrane bioreactor is a wastewater treatment system that combines biological treatment with membrane filtration and is membrane bioreactors for wastewater treatment. Microorganisms break down pollutants in a bioreactor tank, while the membrane separates clean treated water from suspended solids and biomass. It is widely used for municipal wastewater, industrial wastewater treatment, water reuse, and compact treatment systems.
mbr bioreactor
An MBR, short for membrane bioreactor, is an advanced wastewater treatment process and membrane bioreactors for wastewater treatment. It uses a biological process to break down organic pollution and a membrane process to separate clean effluent from solids. This means the system can treat wastewater and filter it in one compact design and membrane bioreactor filtration.
The membrane is the key separation part. It acts like a fine physical barrier. Water passes through the membrane, while suspended solids, sludge, and biomass stay inside the bioreactor tank. This helps the MBR produce clearer effluent than many conventional wastewater treatment systems.
For EPC contractors, municipal wastewater treatment plants, industrial plant owners, and system integrators, this is valuable because the MBR system can save space, support water reuse, and improve treatment stability. As a manufacturer and engineering-oriented provider of water and wastewater treatment systems, we support hollow fiber MBR membranes, hollow fiber UF membranes, flat sheet MBR membranes, RO membranes, EDI modules, pure water treatment plants, wastewater treatment plants, and integrated membrane filtration systems and membrane technology is very mature.
A membrane bioreactor works by combining two steps: biological treatment and membrane filtration. First, wastewater enters a bioreactor tank. Microorganisms in the tank consume organic matter and help reduce pollutants. This part is similar to biological wastewater treatment.
Next, the membrane filtration step separates treated water from mixed liquor. The membrane keeps biomass within the bioreactor and allows clean effluent to pass through. In many systems, the membrane replaces the secondary clarifier used in traditional wastewater treatment.
A simple MBR process looks like this:
| Process Step | What Happens |
|---|---|
| Pretreatment | Screens remove large debris, hair, grit, and fibers |
| Bioreactor tank | Microorganisms break down organic matter |
| Membrane filtration | Membrane separates effluent from suspended solids |
| Permeate discharge | Treated water leaves the system |
| Sludge control | Excess sludge is removed when needed |
| Membrane cleaning | Cleaning helps control fouling and maintain flow |
This treatment process can support stable operation when the design, aeration, membrane area, and cleaning method are properly matched.
A complete MBR system includes more than one membrane module. It is a full treatment system with tanks, pumps, aeration, controls, cleaning units, and process equipment. Each part affects system performance.
The main parts include:
| MBR System Part | Main Function |
|---|---|
| Screen or pretreatment unit | Protects the membrane from large solids |
| Bioreactor tank | Holds activated sludge and biomass |
| Aeration system | Supplies oxygen and helps scour the membrane surface |
| Membrane module | Filters treated water from mixed liquor |
| Suction pump | Draws permeate through the membrane |
| Backwash or cleaning system | Helps reduce membrane fouling |
| PLC / SCADA control | Manages operation, alarms, and automation |
| Sludge discharge system | Removes excess biomass |
| Chemical dosing unit | Supports cleaning and process control |
The membrane module is one of the most important parts, but it cannot work alone. Good pretreatment, stable biological treatment, correct aeration, and reliable controls are also needed.
For industrial wastewater treatment plants or municipal wastewater treatment plants, the design should also include access space for inspection, module lifting, membrane replacement, chemical cleaning, and long-term maintenance,membrane biological reactors.
What is an mbr membrane bioreactor?
Membrane filtration is important because it creates a strong physical barrier in the wastewater treatment process. The membrane filters out suspended solids and biomass, so the effluent becomes clearer and more stable.
In conventional treatment, a secondary clarifier separates sludge by gravity. This can be affected by sludge settling problems, flow changes, and operation conditions. In an MBR, membrane separation does not rely only on gravity settling. This is one reason MBR offers more stable effluent quality.
For water reuse projects, this matters even more. Clear effluent can support additional treatment steps such as disinfection, UF, RO membrane treatment, or EDI polishing. This makes MBR useful in water and wastewater treatment projects where reuse, discharge compliance, or compact design is required.

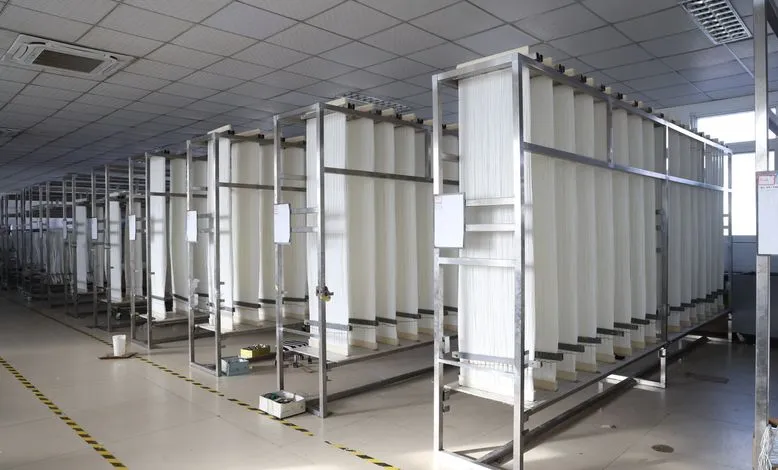

Common MBR membrane types include hollow fiber membrane, flat sheet membrane, and other submerged membranes. Each membrane type has its own benefits, limitations, and best-use conditions.
A hollow fiber MBR membrane usually provides high membrane area in a compact space. It is widely used in municipal wastewater, domestic wastewater, and many industrial wastewater treatment applications. A flat sheet membrane may be easier to inspect and can be suitable for wastewater streams with higher fouling risk.
Common membrane module options include:
| Membrane Type | Common Use | Main Feature |
|---|---|---|
| Hollow fiber membrane | Municipal wastewater and compact systems | High membrane packing density |
| Flat sheet membrane | Industrial wastewater and easy maintenance designs | Easier visual inspection |
| Membrane cassette | Large treatment plant projects | Modular installation |
| Submerged membrane bioreactor module | Integrated MBR tanks | Compact and efficient treatment |
The right membrane type depends on influent quality, treatment capacity, membrane material, membrane cost, operation skill, and cleaning requirements. For EPC projects, the membrane system should match both technical goals and local maintenance ability.
The advantages of membrane bioreactors are clear for many wastewater applications. MBR offers compact layout, strong solid-liquid separation, good effluent quality, and easier automation and bioreactor applications.
Main benefits include:
| Advantage | Why It Matters |
|---|---|
| Smaller footprint | Useful for limited land or retrofit projects |
| Stable effluent | Supports discharge compliance and reuse |
| No secondary clarifier | Simplifies solid-liquid separation |
| High biomass concentration | Supports strong biological treatment |
| Modular system design | Good for containerized or skid-mounted systems |
| PLC / SCADA automation | Easier monitoring and operation |
| Reuse potential | Supports irrigation, flushing, or industrial reuse after proper treatment |
For municipal and industrial wastewater treatment, MBR technology can help project owners meet strict effluent targets while reducing space pressure. This is especially useful for industrial parks, hotels, factories, farms, commercial buildings, and infrastructure projects.
An MBR offers value not only through cleaner water, but also through better project planning. When the system is designed well, it can reduce land use, simplify expansion, and support long-term operation.
The membrane bioreactor is in operation.
Membrane bioreactor systems for wastewater are used in many industries and project types. They can treat municipal wastewater, domestic wastewater, and many kinds of industrial wastewater.
Common MBR applications include:
The applications of membrane bioreactors continue to grow because many projects need compact, modular, and reliable treatment technologies. For international distributors and EPC buyers, MBR modules can also be integrated with RO membranes, UF membranes, EDI modules, and pure water treatment systems.
Membrane fouling is one of the main operation challenges in MBR systems. Fouling happens when solids, biomass, oil, grease, scaling materials, or microorganisms build up on the membrane surface or inside the membrane pores.
Common causes include:
| Fouling Cause | Possible Result |
|---|---|
| Weak pretreatment | Hair, fibers, or debris block the membrane |
| High sludge concentration | More resistance during filtration |
| Poor aeration | Less scouring on membrane surface |
| Oil and grease | Sticky fouling layer |
| High flux operation | Faster pressure increase |
| Poor cleaning schedule | Shorter membrane life |
| Unsuitable wastewater chemistry | Scaling or biological stress |
To reduce fouling, the operation of the MBR must be controlled carefully. This includes screening, stable aeration, correct sludge concentration, reasonable flux, routine backwash, chemical cleaning, and planned membrane replacement.
Good design matters. A low-cost system with poor pretreatment may foul quickly. A properly designed membrane bioreactor system can run more smoothly and protect long-term project value.
Traditional wastewater treatment often uses biological tanks and secondary clarifiers. The secondary clarifier lets sludge settle before treated water is discharged. This method can work well, but it may require more land and may be affected by poor sludge settling.
An MBR replaces the secondary clarifier with membrane filtration. This creates a more compact treatment system and improves solid-liquid separation. In many projects, MBR can produce clearer effluent and support reuse more easily than conventional wastewater treatment systems.
Comparison table:
| Item | Traditional Wastewater Treatment | MBR Treatment System |
|---|---|---|
| Solid-liquid separation | Secondary clarifier | Membrane filtration |
| Footprint | Usually larger | Usually smaller |
| Effluent suspended solids | Depends on settling | Lower and more stable |
| Biomass concentration | Usually lower | Usually higher |
| Reuse potential | Often needs more polishing | Better base for reuse |
| Operation challenge | Sludge settling | Membrane fouling |
| Expansion | May need more civil work | Can be modular |
MBR is not always the lowest-cost option at first purchase. But when land is limited, effluent standards are strict, or reuse is required, it can be the better long-term choice.
EPC buyers should choose an MBR membrane system based on wastewater data, project goals, operation conditions, and long-term support. Price is important, but it should not be the only factor.
Before buying, confirm:
As a professional manufacturer and engineering-oriented provider, we specialize in customized treatment solutions for industrial wastewater treatment, municipal sewage treatment, pure water production, ultrapure water systems, water reuse, containerized treatment plants, skid-mounted systems, and complex EPC water treatment projects.
Industrial wastewater can be more difficult than municipal wastewater because the water quality changes by industry. Food factories may have high organic matter. Textile wastewater may contain color and chemicals. Pharmaceutical and chemical wastewater may need special pretreatment before MBR.
An MBR can be used as part of a larger industrial wastewater treatment system. It may follow pretreatment such as equalization, coagulation, air flotation, anaerobic treatment, or chemical dosing. After MBR, additional treatment steps such as RO, activated carbon, disinfection, or EDI may be added.
This makes MBR useful for system integrators and environmental engineering contractors. It can serve as the core biological and filtration stage in a complete wastewater treatment solution.
For municipal wastewater treatment, MBR can help produce stable effluent in a smaller footprint. This is helpful for city wastewater treatment plants, township projects, rural sewage projects, hotels, commercial areas, and decentralized wastewater treatment.
Municipal wastewater is often more stable than many industrial wastewater streams, which makes MBR easier to design and operate. A municipal wastewater treatment project may use submerged membrane bioreactor systems with multiple membrane cassettes for modular expansion.
For municipal project owners, key concerns include effluent quality, operation cost, energy use, membrane cleaning, spare parts supply, and operator training. A reliable MBR supplier should support both design and long-term service.
A good MBR system manufacturer should not only sell membranes. It should understand process design, membrane applications, project engineering, automation, and commissioning. This is especially important for EPC contractors and overseas distributors.
A strong supplier should provide:
For B2B buyers, this reduces project risk. It also helps ensure that the membrane bioreactor technology works in real site conditions, not just on paper.
An MBR membrane bioreactor is a wastewater treatment system that combines biological treatment with membrane filtration. The biological process removes organic pollution, while the membrane separates treated water from suspended solids and biomass.
A membrane bioreactor works by using microorganisms to treat wastewater in a bioreactor tank. Then the membrane filters the mixed liquid and allows clean effluent to pass through while keeping sludge and solids inside the system.
Traditional wastewater treatment usually uses a secondary clarifier for sludge settling. MBR uses membrane filtration instead. This can reduce footprint, improve effluent quality, and support water reuse.
Membrane fouling can be caused by suspended solids, biomass buildup, oil, grease, scaling, poor aeration, high flux, or weak pretreatment. Good operation and regular cleaning help control fouling.
Yes. MBR can be used for many industrial wastewater treatment projects, including food and beverage, textile, pharmaceutical, chemical, electronics, and industrial park wastewater. Pretreatment may be required depending on wastewater quality.
Yes. MBR effluent can support water reuse after proper disinfection or additional treatment. Depending on reuse standards, RO membrane, UF membrane, activated carbon, or EDI treatment may be added.
