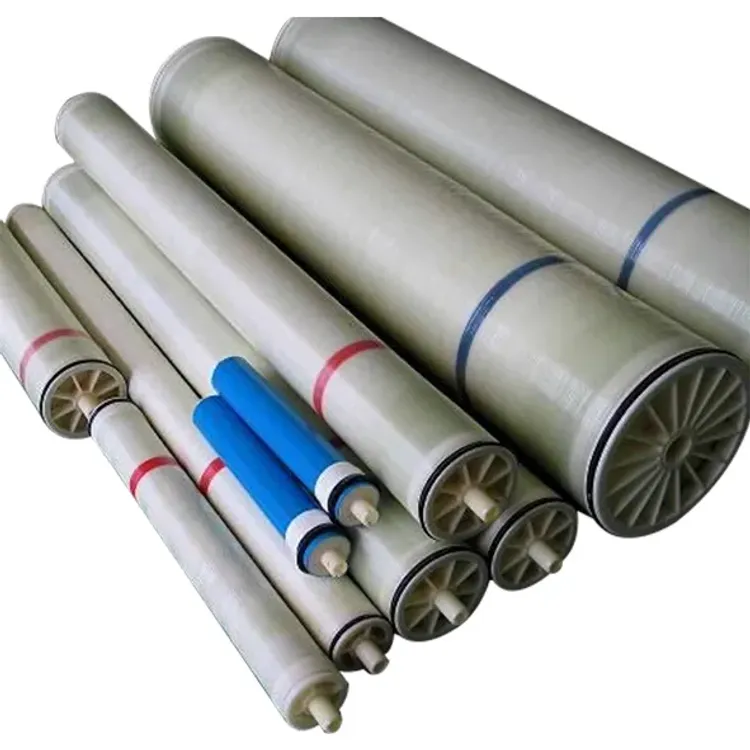

Complete Series of Reverse Osmosis Membranes for Ultimate Desalination

RO Membrane

Complete Series of Reverse Osmosis Membranes for Ultimate Desalination

Product Description:

Reverse osmosis is a membrane separation operation that uses pressure difference to overcome osmotic pressure, separating solvent from the solution. Our complete RO Membrane series removes non-ionic contaminants with molecular weights under 200 Daltons and completely rejects molecules over 300 Daltons, including particles, colloids, and microorganisms. The membrane effectively prevents contaminants larger than 0.0001 microns from passing through, removing more than 90% of ionic contamination and effectively all particulates. The product line includes Seawater (SW), Fouling Resistant (FR), Low Pressure (LP), Ultra-Low Pressure (ULP), and Extra Low Pressure (XLP) series in sizes ranging from 2.5-inch to 8-inch.

Product Advantage:

• Complete Series Availability: Offers a full spectrum of series including SW, FR, LP, ULP, and XLP to match specific feed water salinities and pressure requirements.

• Comprehensive Specifications: Available in standard industry sizes such as 8040, 4040, 2540, and 4021.

• High Rejection Rates: Delivers stable rejection rates up to 99.85% (SW series) and 99.7% (FR/LP series), ensuring ultra-pure water production.

• Commercial & Industrial Use: Includes specialized commercial SWRO and ultra-low pressure elements for diverse applications.

• Customization Supported: OEM and ODM services are fully supported for specialized configurations.

Get Free Quote

Product Specifications

8inch RO Membrane

Model Permeate Flow Rate Effective Area Rejection Rate Pressure (PSI) Test Condition Recovery Rate
GPD/M3/d ft²(m²) Min (%) Stable (%) NaCl
SW8040-400 7500/28.4 400(37.2) 99.7 99.85 800 32000 8%
SW8040-440 8250/31.2 440(41) 99.7 99.85 800 32000 8%
FR-8040-400 11000/41.6 400(37.2) 99.4 99.7 225 2000 15%
LP8040-400 11000/41.6 400(37.2) 99.4 99.7 225 2000 15%
LP8040-440 12650/48 440(41) 99.4 99.7 225 2000 15%
ULP8040-400 12100/45.8 400(37.2) 99 99.5 150 1500 15%
ULP8040-440 13300/50.3 440(41) 99 99.5 150 1500 15%
XLP8040-400 9500/36.0 400(37.2) 98.5 99 100 500 15%
XLP8040-440 10500/39.7 440(41) 98.5 99 100 500 15%



4inch RO Membrane

Model Permeate Flow Rate Effective Area Rejection Rate Pressure (PSI) Test Condition Recovery Rate
GPD/M3/d ft²(m²) Min (%) Stable (%) NaCl
SW4040 1900/7.2 85(7.9) 99.6 99.8 800 32000 8%
FR4040 1900/7.2 73(7.0) 99.4 99.7 225 2000 15%
LP4040 2600/9.8 87(8.0) 99.4 99.7 225 2000 15%
ULP4040 2850/10.8 87(8.0) 99.3 99.5 150 2000 15%
XLP4040 2600/9.8 93.5(8.7) 98.5 99 100 500 15%

Commercial RO Membrane

Model Type Permeate Flow Rejection Rate (%) Membrane Area Testing Condition (25℃)
GPD m³/d ft² m² psi Mpa NaCl (Mg/L) Recovery Rate (%)
SW11-4021 Commercial SWRO 750 2.8 99.5 33 3.1 800 5.52 32000 4
SW11-2521 270 1 99.5 12 1.1 4
SW11-2540 600 2.3 99.5 28 2.6 8
ULP21-4021 Ultra low pressure elements 950 3.6 99 36 3.3 150 1.03 1500 8
ULP21-2521 300 1.13 99 14 1.3 8
ULP21-2540 750 2.84 99 30 2.8 15



Product usage scenarios

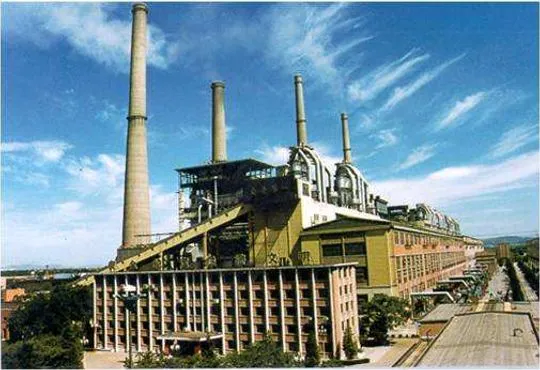

  • Chemical industry process water

  • Drinking pure water

  • Electric power industry

  • Electronic industrial water

  • Food industrial water

  • Other process water

  • Seawater

  • Pharmaceutical industry

Related products

Long-term Technical Support

If influent changes or performance targets become stricter, we can review your current setup and suggest adjustments to keep results stable and cost-effective.
