Banott's Hollow Fiber UF Membrane Modules deliver industrial-grade ultrafiltration with a pore size range of 0.002–0.1µm (MWCO 30,000–150,000 Dalton). Engineered with PES, PVDF, RPVDF, PAN, or RPES fibers, our modules support both inside-out and outside-in operation modes, as well as cross-flow and dead-end filtration. With complete sizes from 4" to 12.5", these modules are designed for seamless fungibility (replacement) with leading brands. OEM and ODM services fully supported.

Product Description:

Ensure pure water output and reliable system performance with Banott’s Industrial Hollow Fiber UF Membrane Module. As a comprehensive provider of membrane products and integrated water treatment solutions, Banott manufactures ultrafiltration modules engineered to meet the rigorous demands of industrial water purification, municipal water treatment, and wastewater reuse projects.

Our modules feature complete size ranges (4″, 6″, 7″, 8″, 9″, 10″, 11″, and 12.5″) and are fully compatible (fungible) with leading global brands, making them the ideal choice for system integrators, water engineering companies, and project contractors seeking high-performance replacements or new project supplies.

Product Advantage:

  1. Complete Size Range: Available in 4″, 6″, 7″, 8″, 9″, 10″, 11″, and 12.5″ diameters, suitable for any system configuration.
  2. Brand Fungibility (Seamless Replacement): Engineered as a direct replacement for famous brands, including Pentair, Dow, Hydranautics, Inge, and GE, providing a cost-effective upgrade path for existing systems.
  3. Multi-Material Fiber Options: Choose from PES, PAN, RPVDF, or RPES membrane fibers to perfectly match your specific water chemistry and operating temperature requirements.
  4. Flexible Operation Modes: Supports both In-Outside (inside-out) and Outside-In flow configurations, as well as both Cross-Flow and Dead-End filtration modes.
  5. High Filtration Precision: Reliable retention of bacteria, viruses, colloids, and suspended solids with nominal pore sizes of 0.01 µm, 0.02 µm, and 0.08 µm available.
  6. OEM & ODM Acceptable: Customized specifications, branding, and packaging are fully supported for distributors and system integrators worldwide.
Get Free Quote

Product Specifications

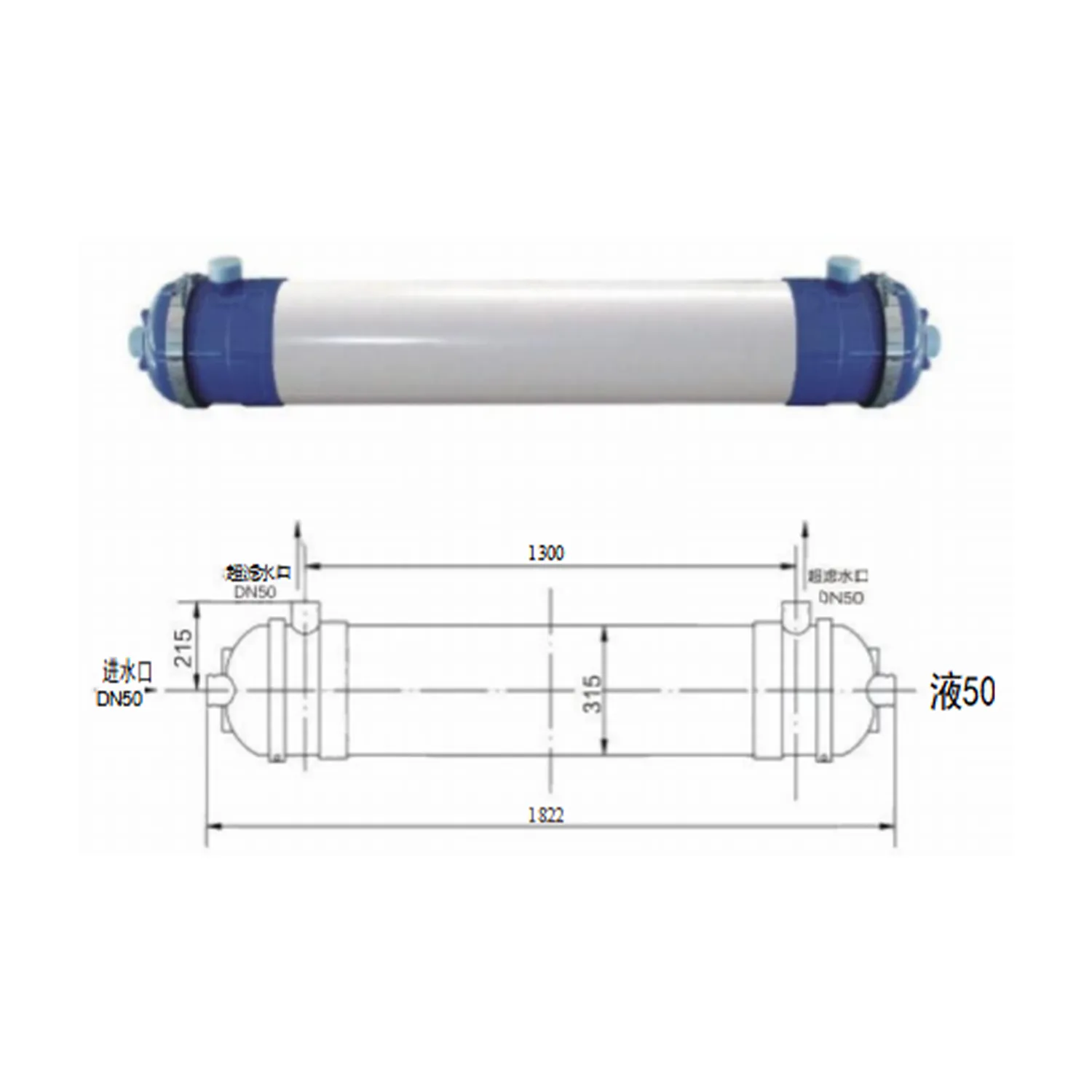

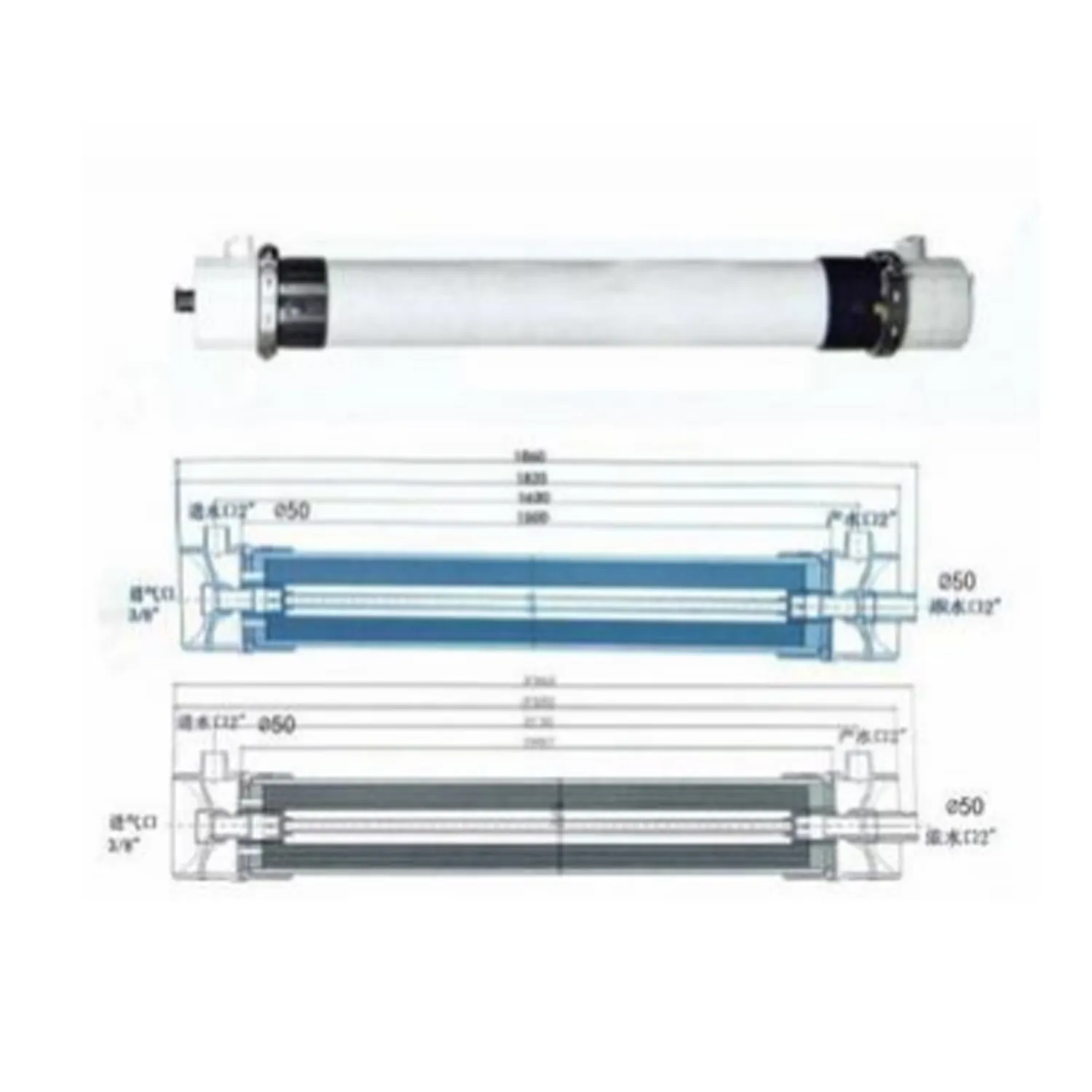

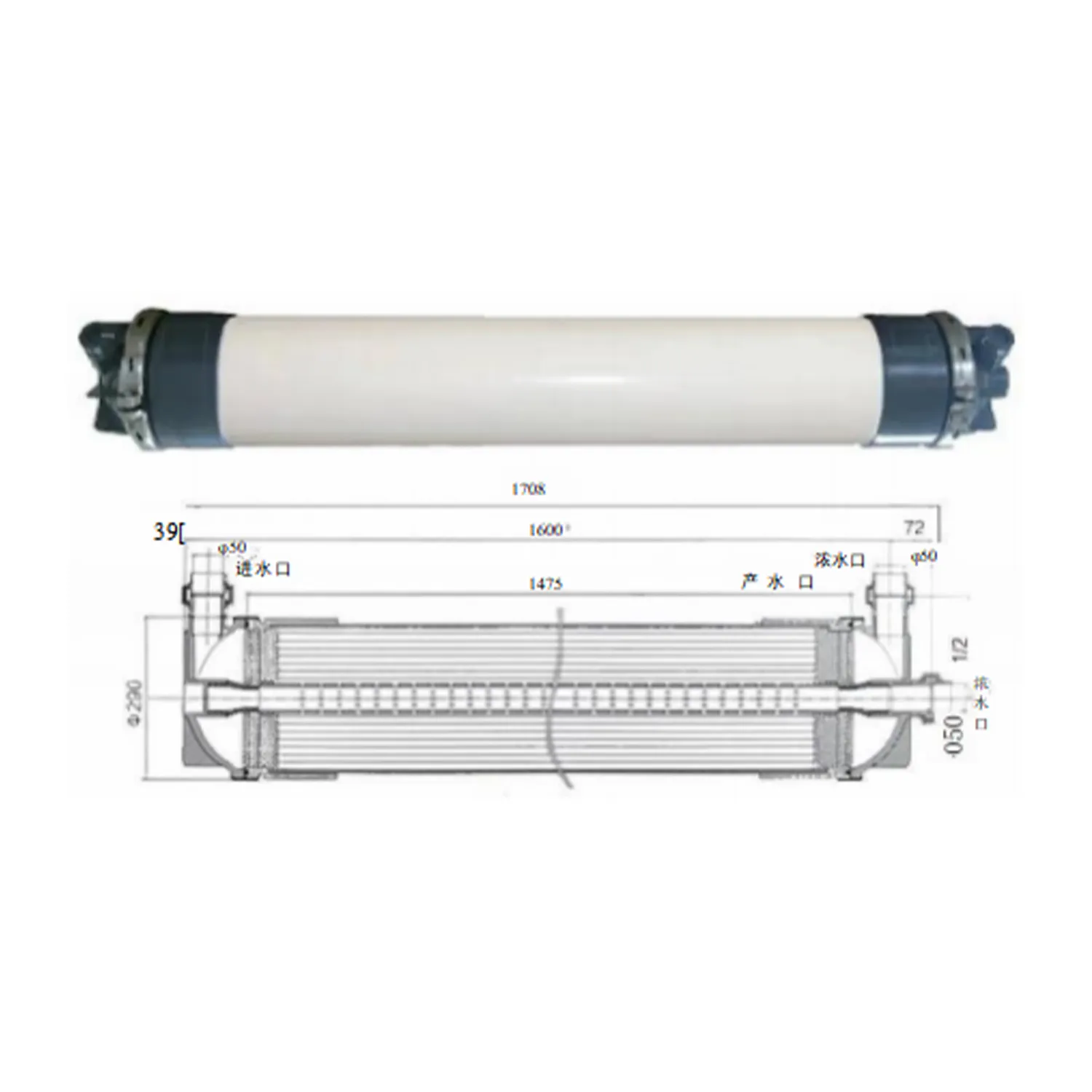

Model Spec Outersize (mm) Distance from side to center (mm) Material (㎡) Design flux m³/0.1MPa,25℃ Run mode Link calibre Φ Design flux (LMP,0.1MPa,25℃) Nominal pore size
φ90 UFJ4040 90*1016 / PES / MPES 4.5 0.22-0.36 in-outside 19 50-80 0.01um
φ160 UFJ8090 90*1115 910 4.5 0.2-0.4 in-outside 32
UFJA1610 160*1330 990 20 0.9-1.44 in-outside 32/40
φ200 UFJ8040 200*1016 / 20 1.0-1.6 in-outside 28.7
UFJ8060 200*1527 / 40 1.9-3.04 in-outside 42.6
WH40-2 200*1527 / 40 1.6-6.03 in-outside 42.6
WH64 200*1527 / 64 2.56-9.6 in-outside 42.6
UFAIA200 200*1902 1742 40 1.9-3.04 in-outside 63
φ219 CNA02 200*1902 1742 40 1.6-6.03 in-outside 63
UFJIA219 219*1902 1742 50 2.3-3.68 in-outside 63
CN55 219*1902 1742 55 2.2-8.25 in-outside 63
φ225 CN64 219*1902 1742 64 2.56-9.6 in-outside 63
UFJA225H/L 225*1708 1600 45 2.0-3.6 in-outside 50
UFJA250S/L 250*1715/1813 1600/1705 50 2.5-4.0 in-outside 50
φ250 UFAIA250-1675 250*1675 1600 60 3.0-4.8 in-outside 50
UFAIA250-1682 250*1682 1600 60 2.4-7.2 in-outside 50
UFAIA250-1914 250*1914 1834 80 3.2-15 in-outside 50
UFAIA250-2 250*2100 1924 80 3.2-15 in-outside 50
0.9UF-80ST 250*2110 1925 80 4.8-14.4 in-outside 50
φ273 UFJA273 273*1830 / 40 0.6-4 in-outside 50
φ315 UFJA315S 315*1302 780 50 2.25-4.0 in-outside 63
UFJA315L 315*1822 1300 80 4.0-6.4 in-outside 63
Model Spec Outersize (mm) Distance from side to center (mm) Material （㎡） Design flux m³/0.1MPa,25℃ Run mode Link calibre Φ Design flux (LMP,0.1MPa,25℃) Nominal pore size
φ90 UFJ4040 90*1016 / PAN 4 0.24-0.48 in-outside 19 60-120 0.02um
φ160 UFJB90 90*1115 910 4 0.24-0.48 in-outside 32
UFJA1610 160*1330 990 15 0.9-1.8 in-outside 32/40
φ200 UFJB040 200*1016 / 15 0.9-1.8 in-outside 28.7
φ225 UFJB200 200*1410 1400 18 1.08-2.16 in-outside 50
φ225 UFJA225 225*1708 1600 30 1.8-3.6 in-outside 50
φ250 UFJA250S/L 250*1715/1813 1600/1705 35 2.1-4.2 in-outside 50
φ90 0.9UFJB90 90*1115 910 PVDF 9 0.36-0.9 outside-in 32 40-100 0.08um
φ160 UFOA160 160*1330 990 30 1.08-2.43 outside-in 32/40
UF0685-50 160*2418 1990 50 2.0-6.0 outside-in /
φ180 UF-0770 180*1920 1704 PVDF (TIPS) 70 2.5-6.7 outside-in 48.3
φ200 UFOA200 200*1860 1495 60 2.4-6.0 outside-in 50
UFOA225 225*1708 1600 60 2.4-6.0 outside-in 50
φ225 UFOA260 225*1860 1630 71 2.04-5.1 outside-in 50
UFOA2880 225*2360 2130 77 3.08-7.7 outside-in 50
UF0880X 225*2360 2130 80 3.0-9.0 outside-in 50
φ250 UFA250S/L 250*1715/1813 1600/1705 PVDF 77 3.08-7.7 outside-in 50

Product usage scenarios

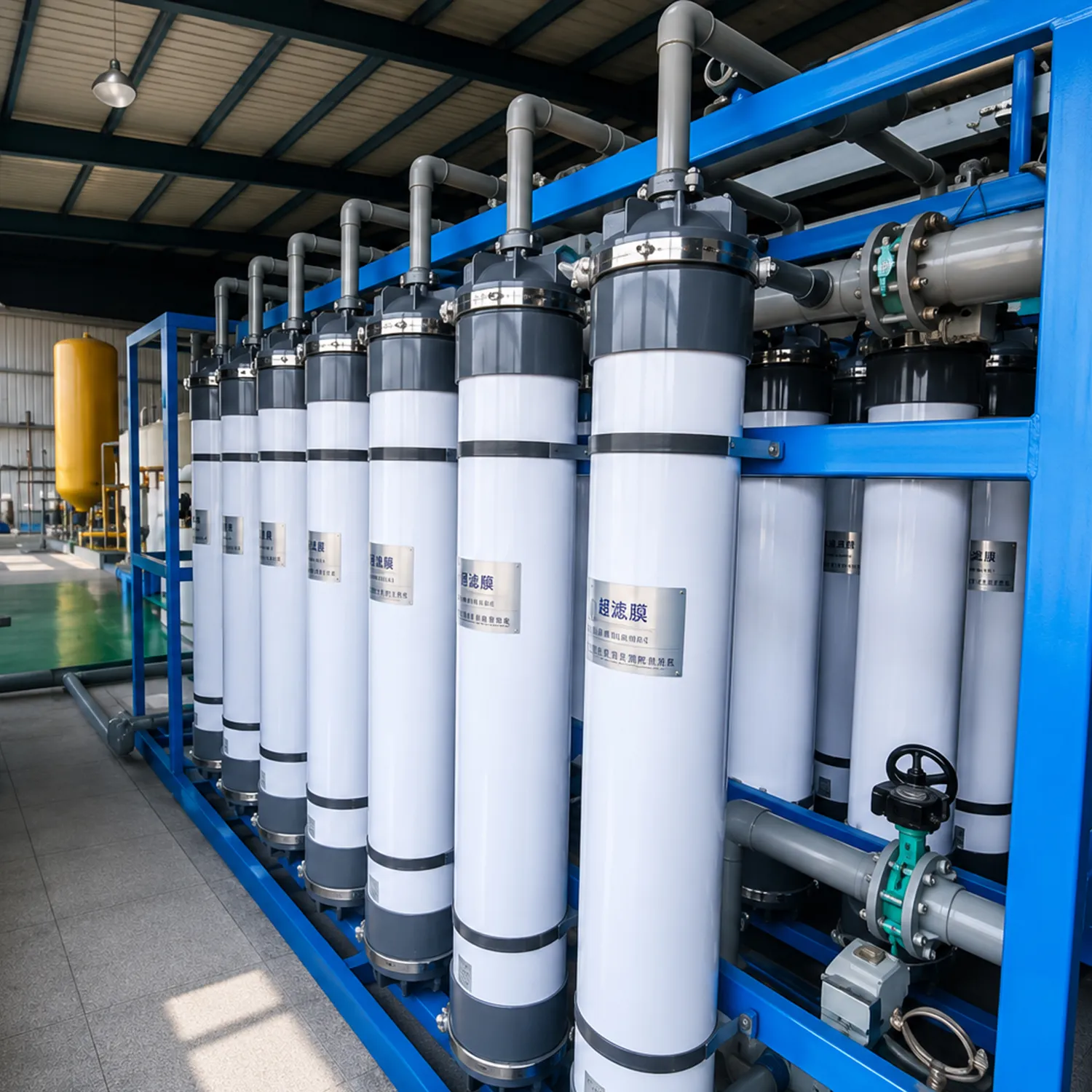

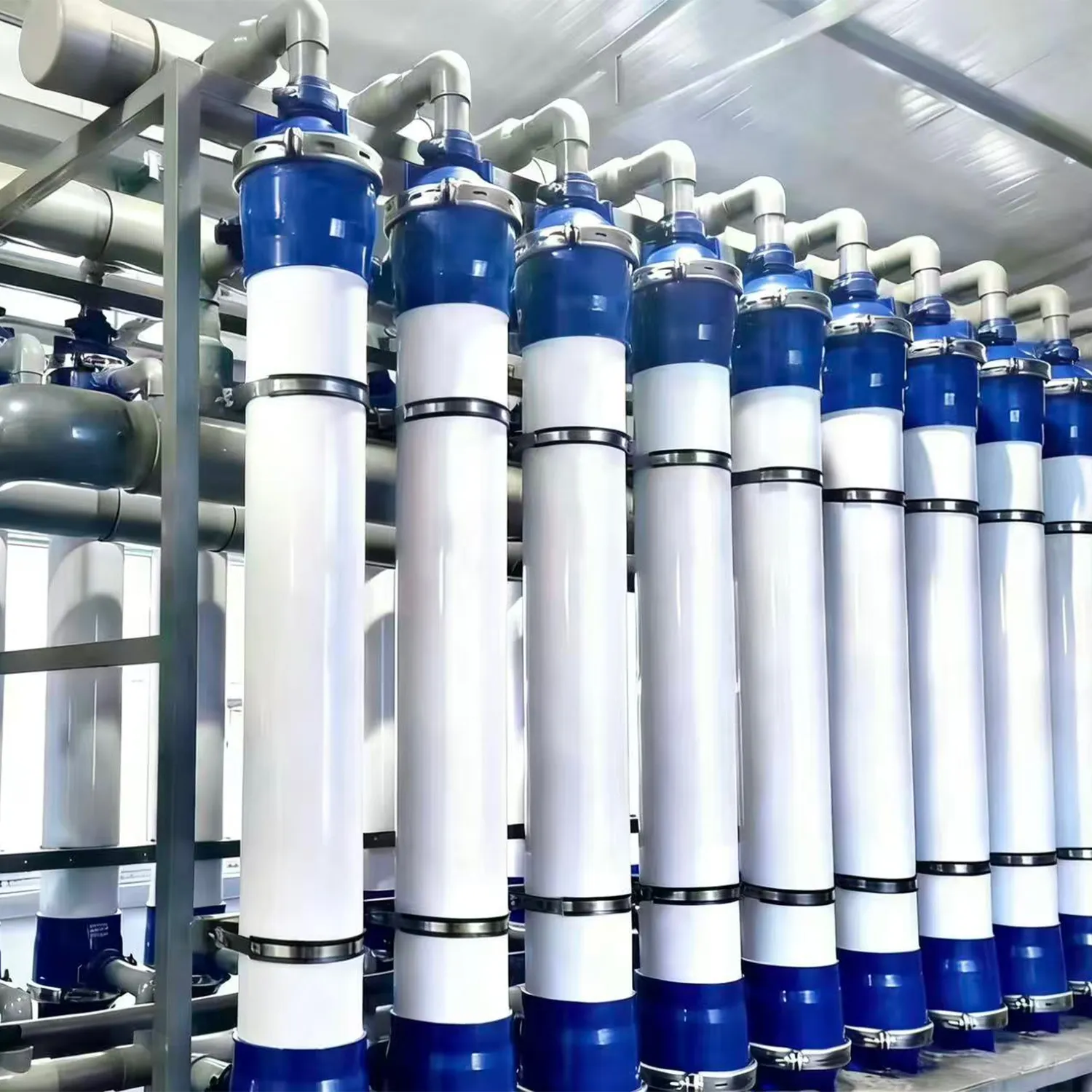

Banott's hollow fiber UF membrane modules are widely deployed in:

  • Hollow Fiber UF Membrane

    Clear Water Treatment

  • Hollow Fiber UF Membrane

    Environmental protection industry

  • Hollow Fiber UF Membrane

    Fermentation industry application

  • Hollow Fiber UF Membrane

    Food and beverage industry application

  • Pharmaceutical industry

    Pharmaceutical industry

  • Hollow Fiber UF Membrane

    Ultrapure water applications

  • Hollow Fiber UF Membrane

    Wastewater Treatment

Related products

Long-term Technical Support

If influent changes or performance targets become stricter, we can review your current setup and suggest adjustments to keep results stable and cost-effective.
