Automatic Valve Whole House UF Water Purifier

Automatic Valve Whole House Ultrafiltration Water Purifier
Automatic Valve Whole House Ultrafiltration Water Purifier
Automatic Valve Whole House Ultrafiltration Water Purifier
Automatic Valve Whole House Ultrafiltration Water Purifier
Automatic Valve Whole House Ultrafiltration Water Purifier
Automatic Valve Whole House Ultrafiltration Water Purifier

Automatic Valve Whole House Ultrafiltration Water Purifier

The Automatic Valve Whole House Ultrafiltration Water Purifier is designed for centralized high-flow residential water filtration. Combining a washable PVDF ultrafiltration membrane, durable stainless steel housing, automatic valve head and integrated pressure gauge, the system provides a convenient point-of-entry filtration solution for whole-house water supply. Available in 5,000 L/H, 8,000 L/H and 10,000 L/H configurations, the series supports different residential water-demand levels. The standard connection is a 1-inch internal thread, while customized connection specifications are available for bulk orders.

Product Description:

Whole-house water filtration systems need sufficient flow capacity while remaining convenient to operate and maintain. This automatic valve UF water purifier integrates a stainless steel pressure housing, washable PVDF ultrafiltration membrane and automatic valve head into a compact vertical structure suitable for residential installations.
Installed on the main incoming water line, the system provides centralized physical membrane filtration before water is distributed to household outlets. The automatic valve head reduces the need for frequent manual operation, while the front-mounted pressure gauge allows convenient observation of system pressure.
Three standard flow capacities are available, allowing the product to serve different home sizes and peak water-use requirements.

Product Advantage:

·Automatic Valve Operation: The integrated automatic valve head provides more convenient system operation compared with conventional manual-valve configurations and is suitable for users seeking easier whole-house filtration management.

·High-Flow Whole-House Filtration: Available in 5,000 L/H, 8,000 L/H and 10,000 L/H models for different residential water-demand requirements.

·Washable PVDF Ultrafiltration Membrane: The internal PVDF UF membrane supports routine cleaning and helps maintain filtration performance during long-term use.

·Durable Stainless Steel Housing: The stainless steel cylindrical housing provides strong structural protection and corrosion resistance for residential water filtration installations.

·Integrated Pressure Gauge: A front-mounted pressure gauge provides a convenient visual reference for operating pressure and routine system inspection.

·Multiple Capacities & Custom Connections: Three standard flow options are available, while connection specifications can be customized for bulk orders and project requirements.

Get Free Quote

Product Specifications

Parameter 5,000 L/H Model 8,000 L/H Model 10,000 L/H Model
Product Type Automatic Valve Whole House UF Water Purifier Automatic Valve Whole House UF Water Purifier Automatic Valve Whole House UF Water Purifier
Water Flow 5,000 L/H 8,000 L/H 10,000 L/H

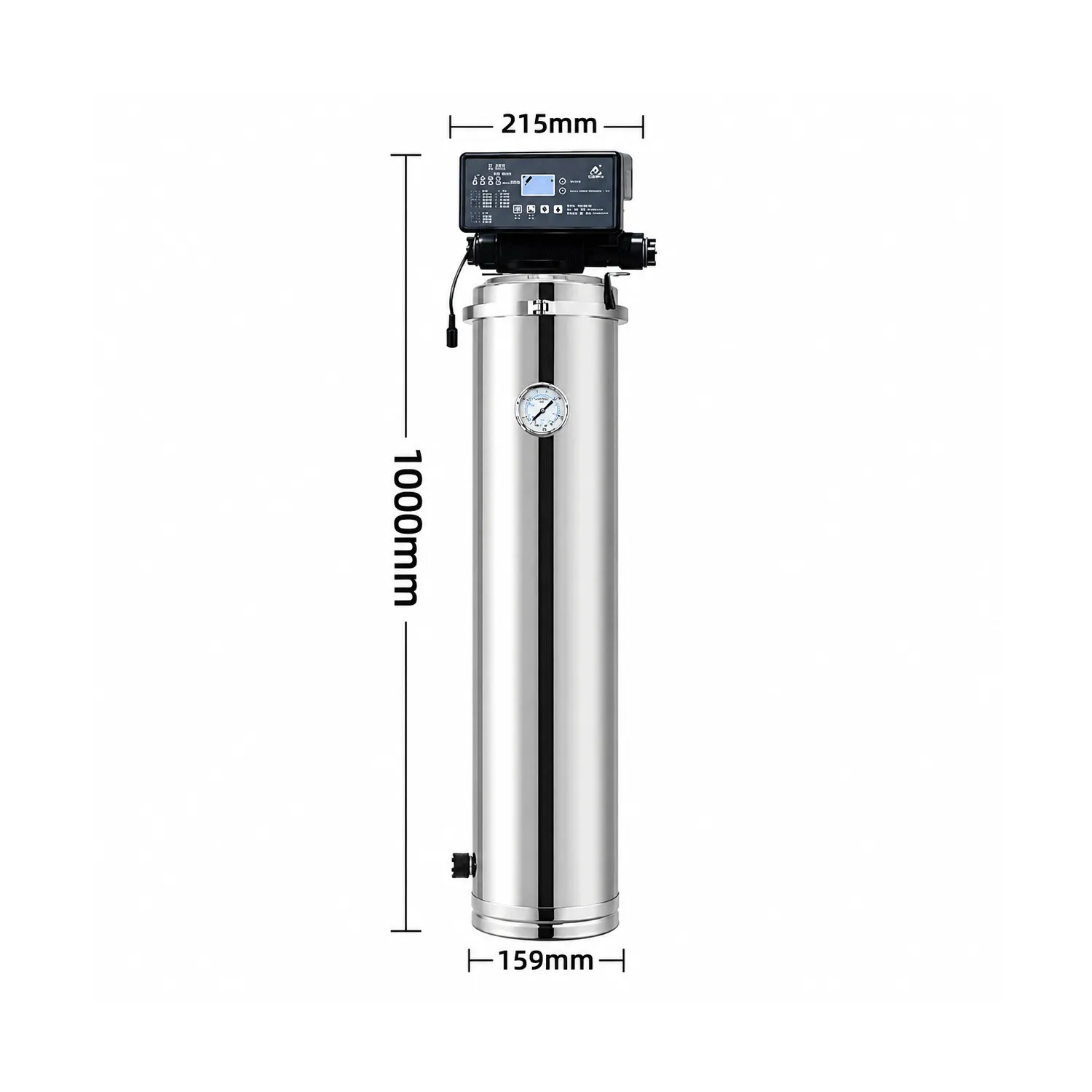

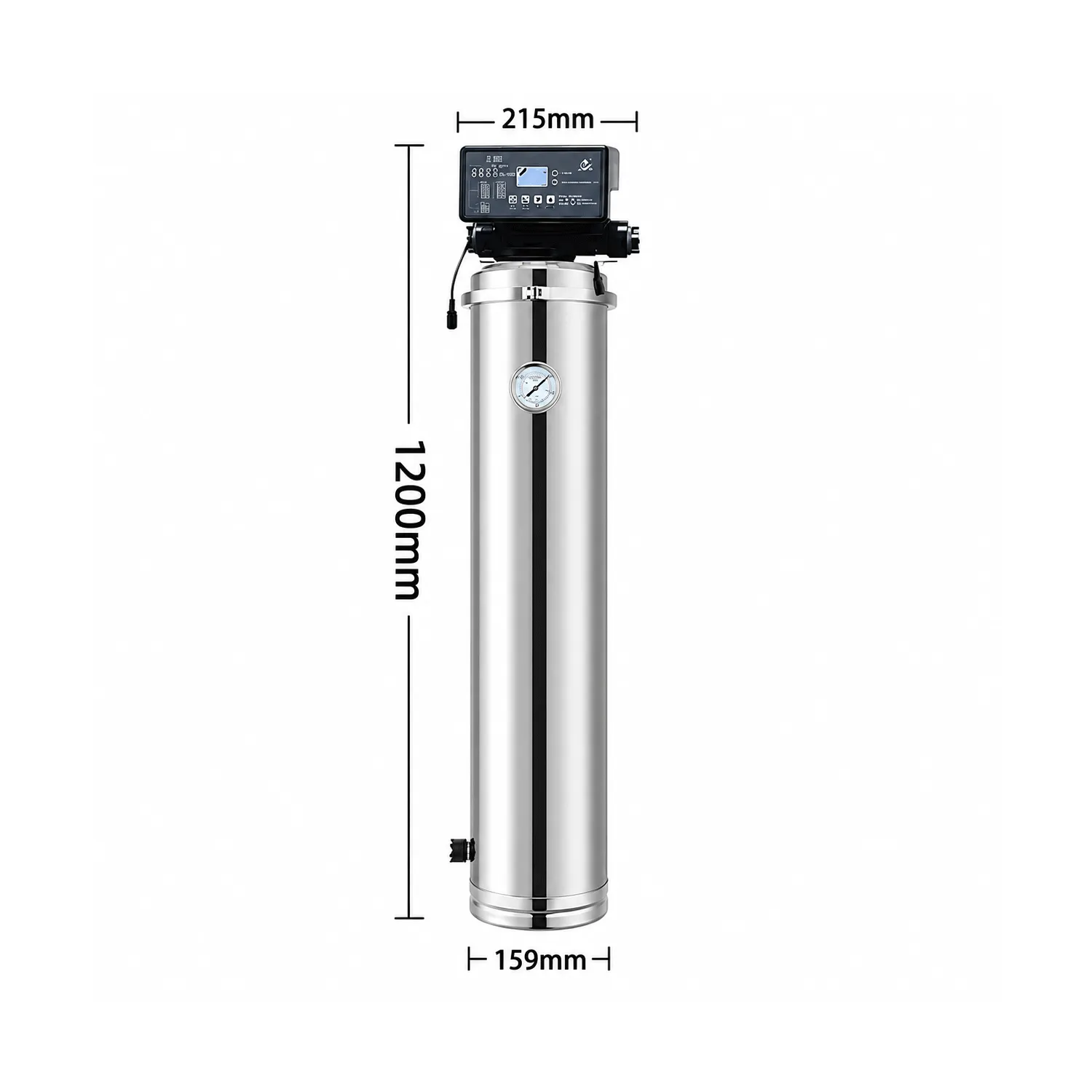

Product Size 159 × 215 × 700 mm 159 × 215 × 1,000 mm 159 × 215 × 1,200 mm
Housing Diameter 159 mm 159 mm 159 mm
Maximum Width 215 mm 215 mm 215 mm
Membrane Cartridge Size 127 × 630 mm 127 × 860 mm 127 × 960 mm
Membrane Type Washable PVDF UF Membrane Washable PVDF UF Membrane Washable PVDF UF Membrane
Housing Material Stainless Steel Stainless Steel Stainless Steel
Valve Type Automatic Valve Head Automatic Valve Head Automatic Valve Head
Pressure Gauge Included Included Included
Connection Size 1″ Internal Thread 1″ Internal Thread 1″ Internal Thread
Custom Connection Available for Bulk Orders Available for Bulk Orders Available for Bulk Orders



Product usage scenarios

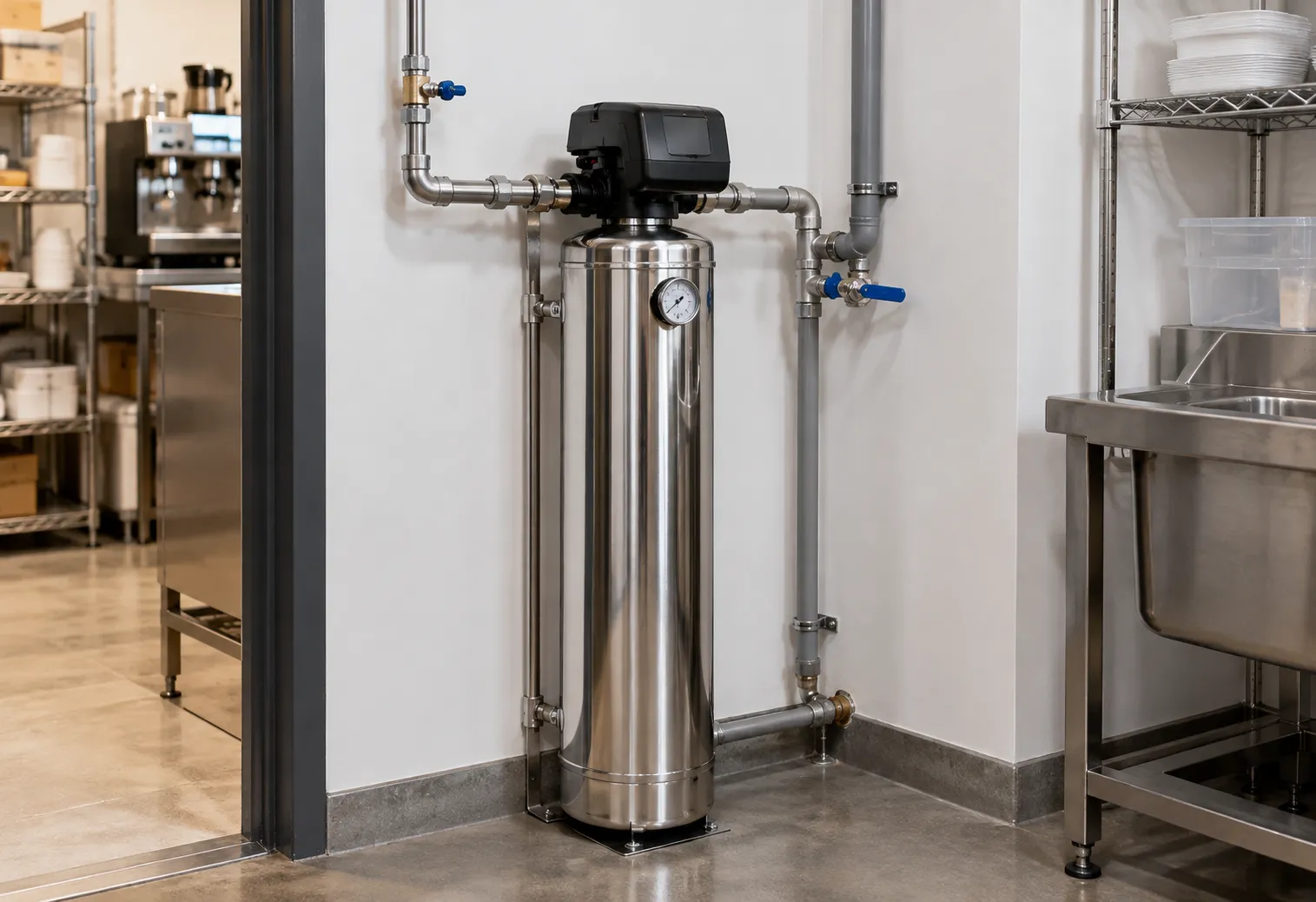

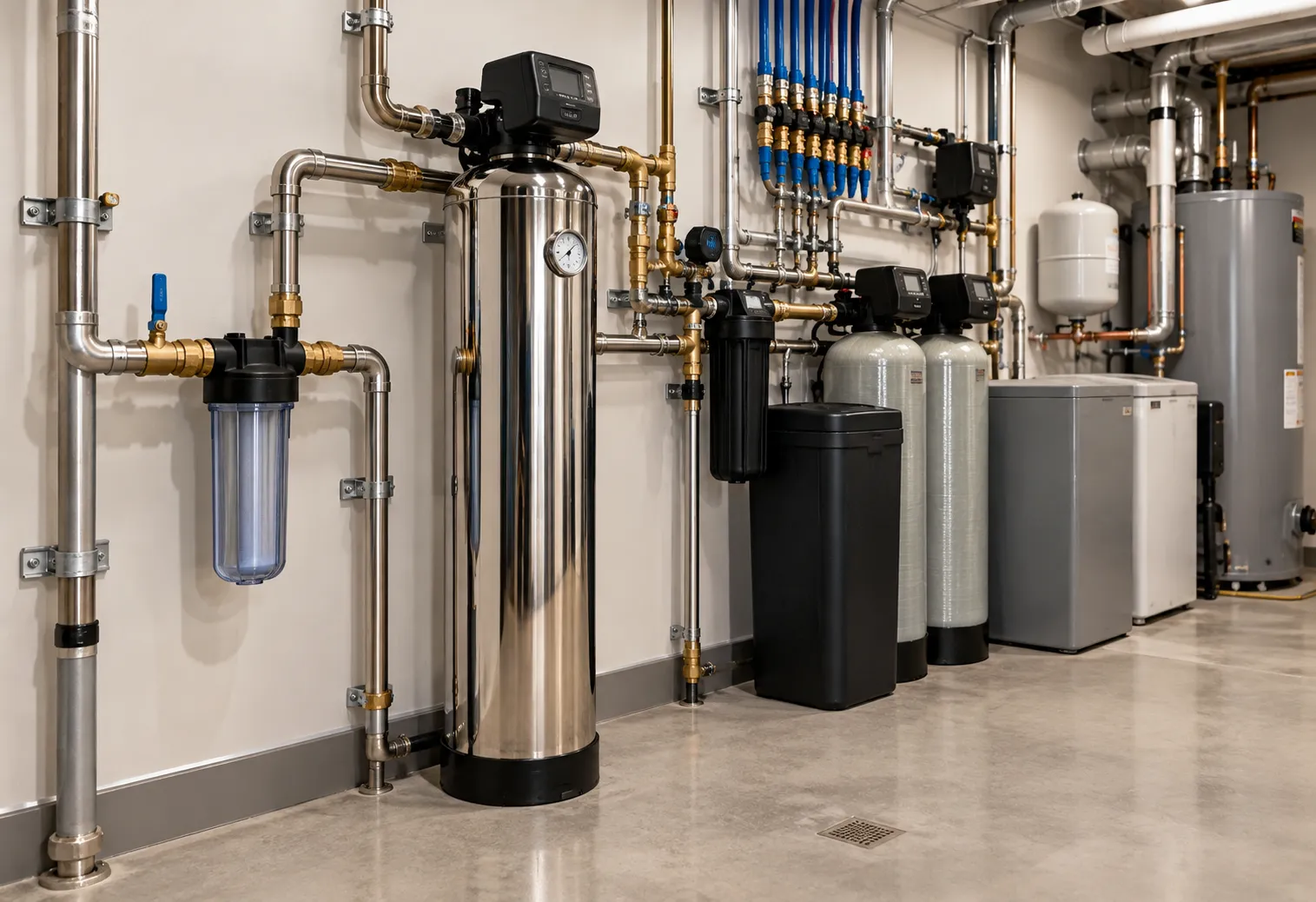

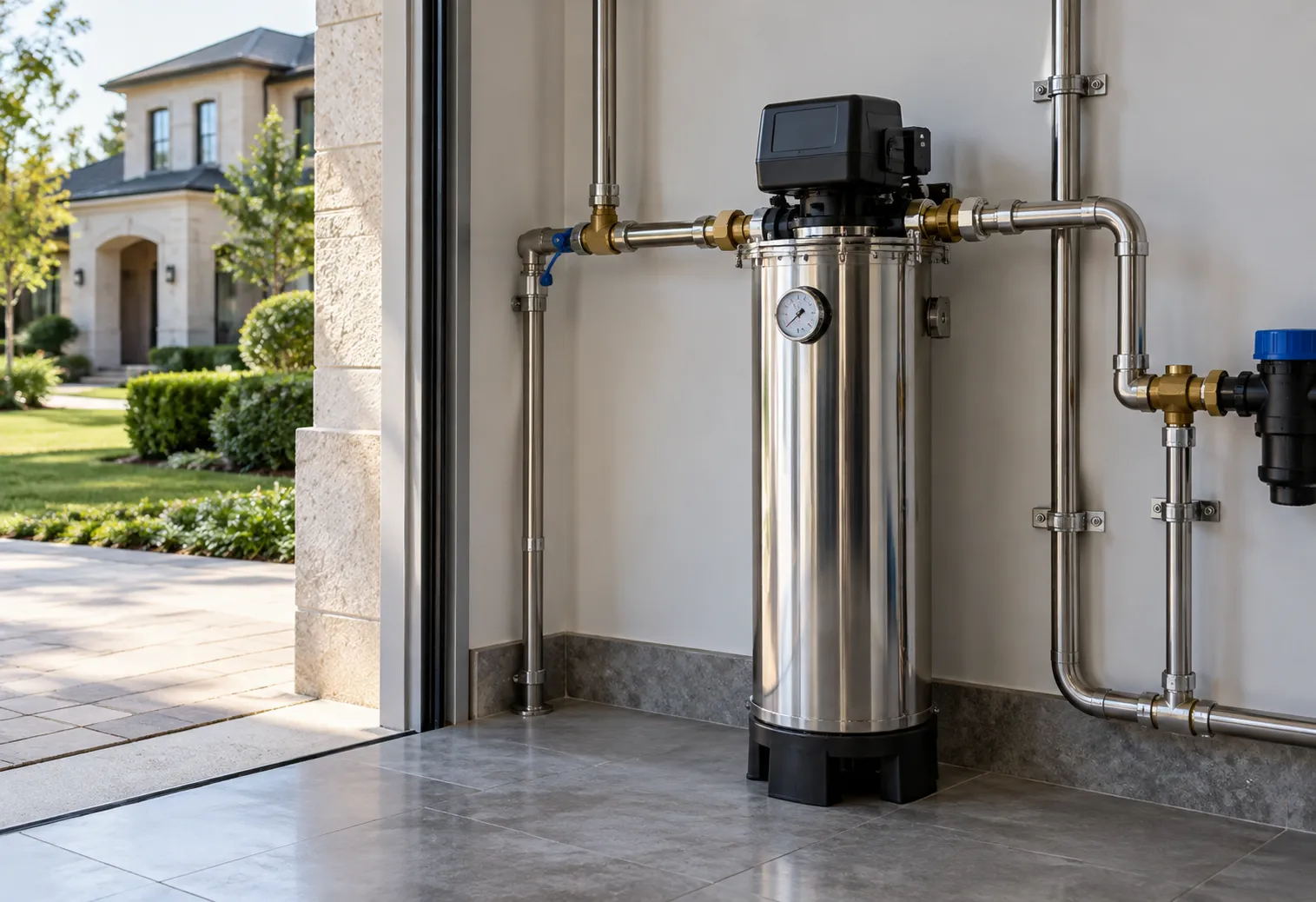

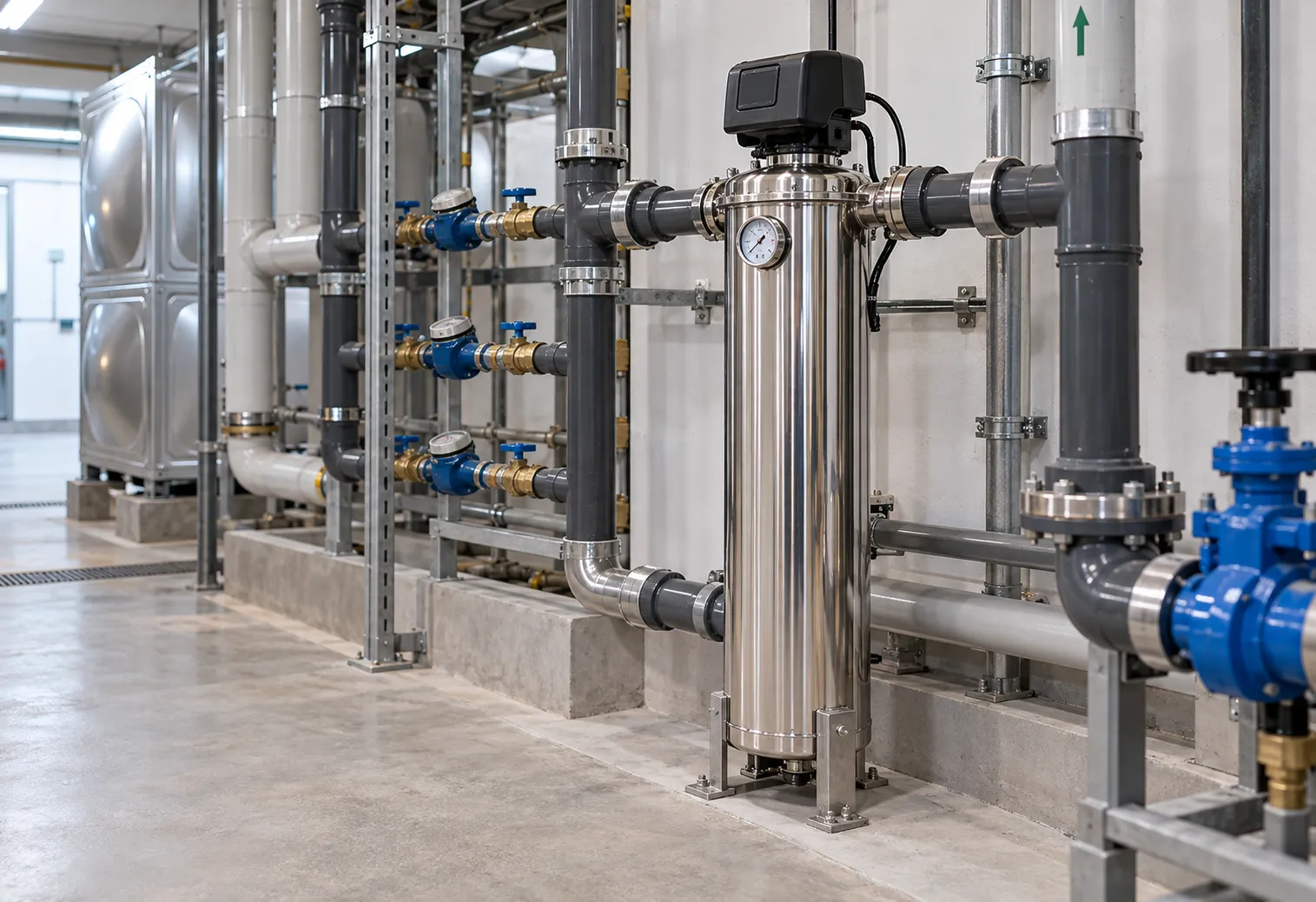

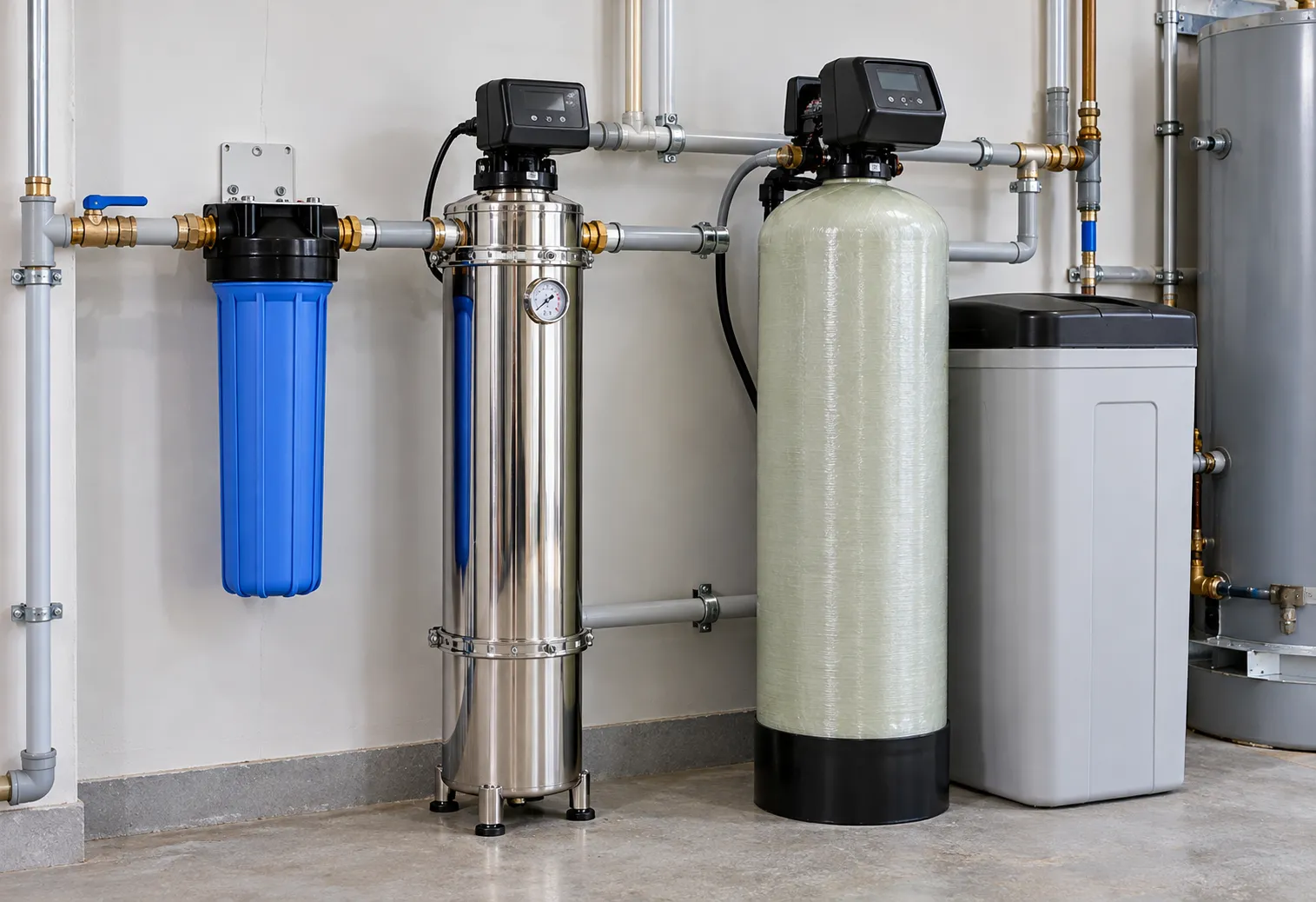

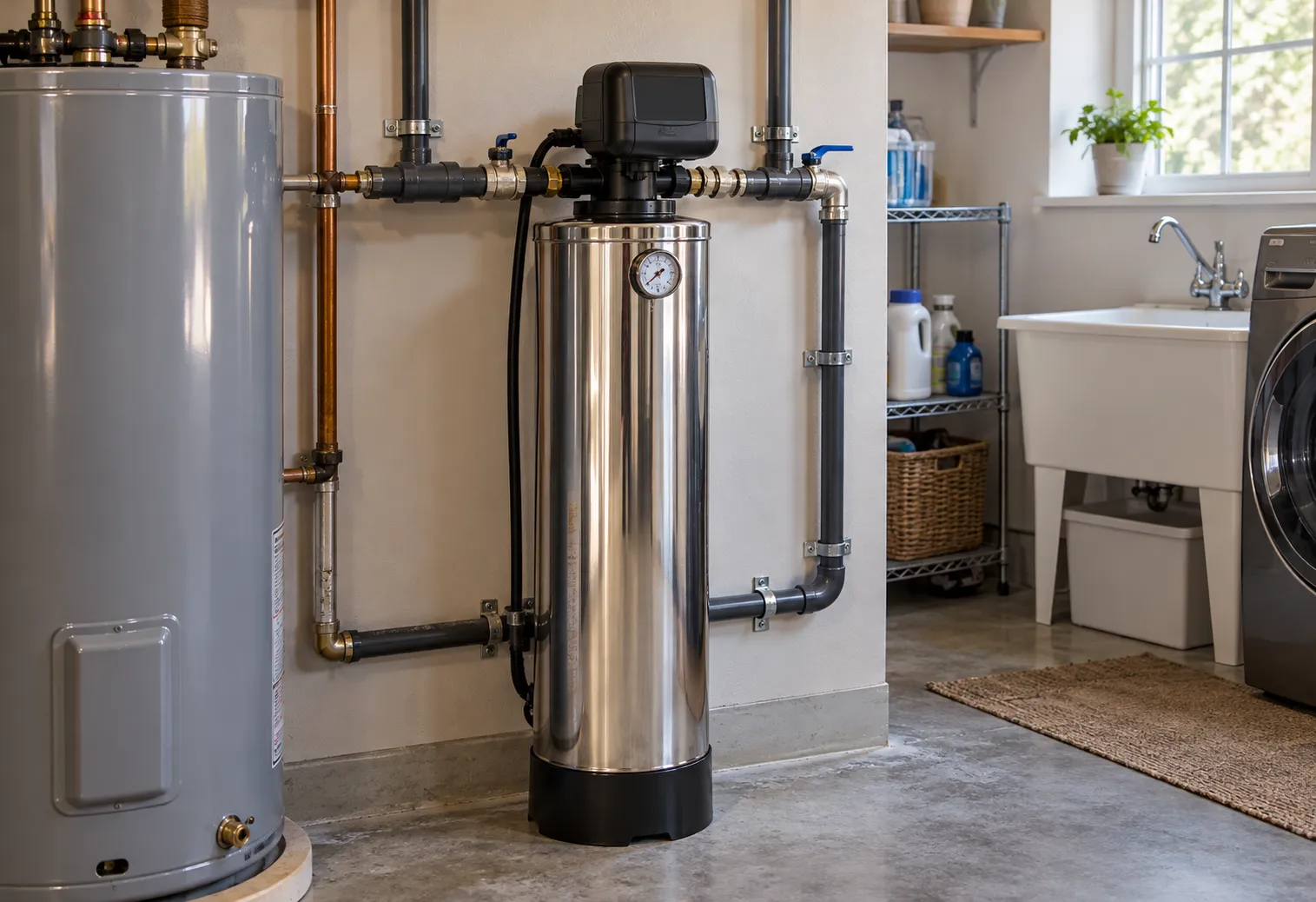

Designed for convenient centralized whole-house water filtration, Banott's automatic valve UF purifier combines a washable PVDF membrane, stainless steel housing and automatic valve control. It is suitable for:

  • Villas & Detached Houses

  • Medium-Sized Residential Homes

  • Large Residences

  • Apartments & Residential Buildings

  • Residential Water Pretreatment

  • Light Commercial Applications
