159 Series High-Flow Visual Quick-Release Clamp Whole House UF Water Purifier

159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier
159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier

159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier

The 159 Series Visual Quick-Release Clamp Whole House Ultrafiltration Water Purifier is designed for high-flow residential whole-house water filtration. Featuring a washable PVDF ultrafiltration membrane, enlarged stainless steel vertical housing, transparent lower section and quick-release clamp structure, the series combines high water capacity with convenient inspection and maintenance. Available in 6,000 L/H, 8,000 L/H, 10,000 L/H, 12,000 L/H and 15,000 L/H configurations, the series supports a wide range of residential water-demand levels from medium-sized homes to villas and large self-built houses. Standard connection options include 1-inch internal thread and 1/2-inch male thread, with customized connections available for bulk orders.

Product Description:

High-flow whole-house water filtration requires sufficient membrane capacity, reliable housing construction and convenient servicing. Banott’s 159 Series visual quick-release clamp UF purifier is designed for these larger residential water-treatment requirements.

The system uses a PVDF ultrafiltration membrane cartridge inside a vertical stainless steel housing. Incoming water passes through the UF membrane before being supplied to household water points or downstream treatment equipment.

Compared with the smaller 102 Series and 127 Series visual UF purifiers, the 159 Series uses a larger housing and longer membrane cartridges, allowing rated flow options up to 15,000 L/H.

A transparent lower chamber provides visual access around the membrane section, while the quick-release clamp structure simplifies cartridge access during inspection, cleaning and maintenance.

Product Advantage:

·High-Flow Whole-House Filtration: Five configurations from 6,000 L/H to 15,000 L/H provide flexible capacity selection for different residential water-demand levels.

·Washable PVDF Ultrafiltration Membrane: The internal PVDF UF membrane supports physical filtration and routine cleaning for residential whole-house water treatment.

·159 mm Enlarged Housing: The larger vertical housing accommodates high-capacity membrane cartridges and supports increased water flow.

·Visual Lower Chamber: The transparent lower section provides convenient observation around the membrane assembly during routine inspection.

·Quick-Release Clamp Design: The clamp structure provides easier access to the internal membrane cartridge for inspection, cleaning or replacement.

·Flexible Connection Options: Standard models support 1-inch internal thread and 1/2-inch male thread, with customized connection specifications available for bulk orders.

Get Free Quote

Product Specifications

Parameter 6,000 L/H 8,000 L/H 10,000 L/H 12,000 L/H 15,000 L/H
Product Type Visual Quick-Release Clamp UF Water Purifier Visual Quick-Release Clamp UF Water Purifier Visual Quick-Release Clamp UF Water Purifier Visual Quick-Release Clamp UF Water Purifier Visual Quick-Release Clamp UF Water Purifier
Rated Water Flow 6,000 L/H 8,000 L/H 10,000 L/H 12,000 L/H 15,000 L/H

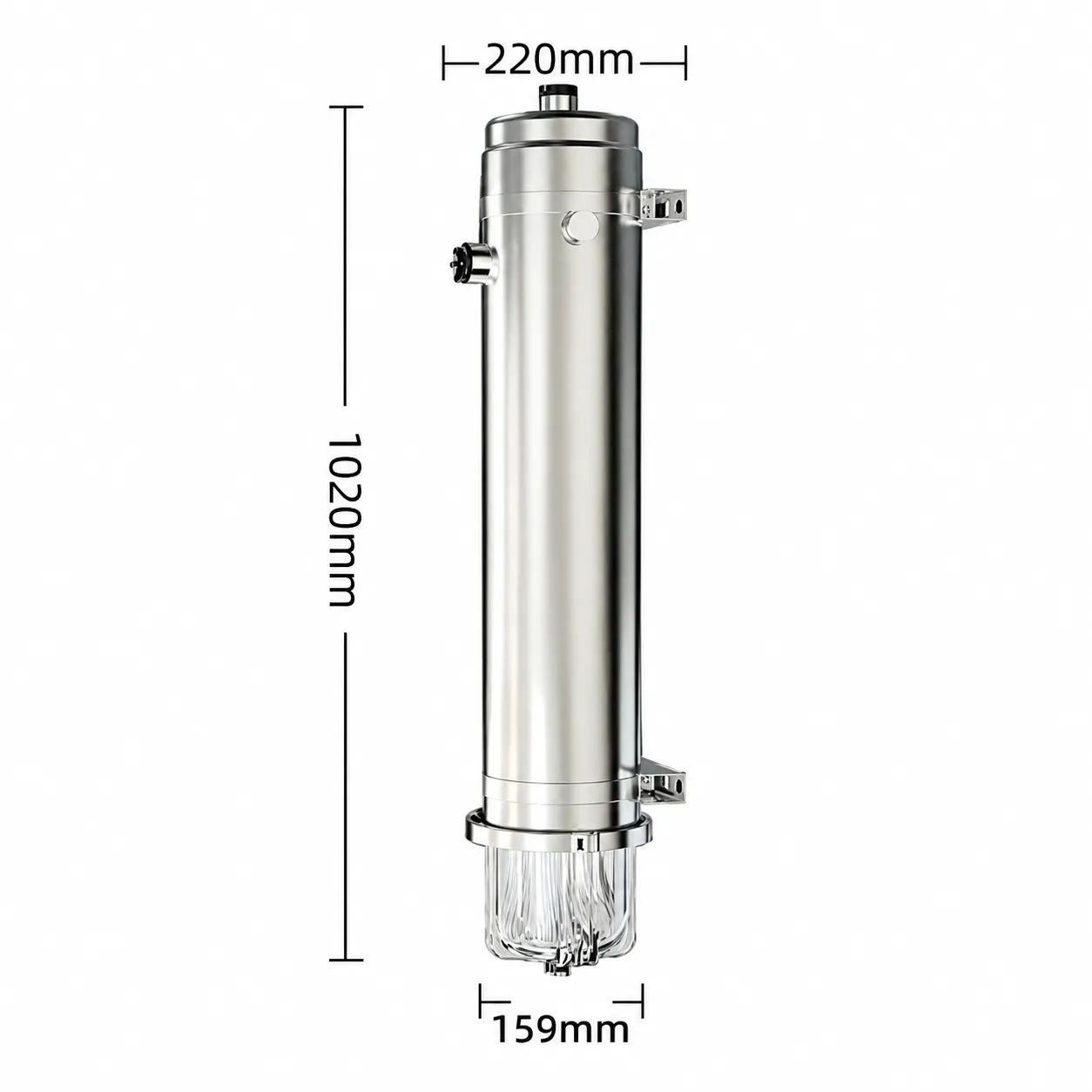

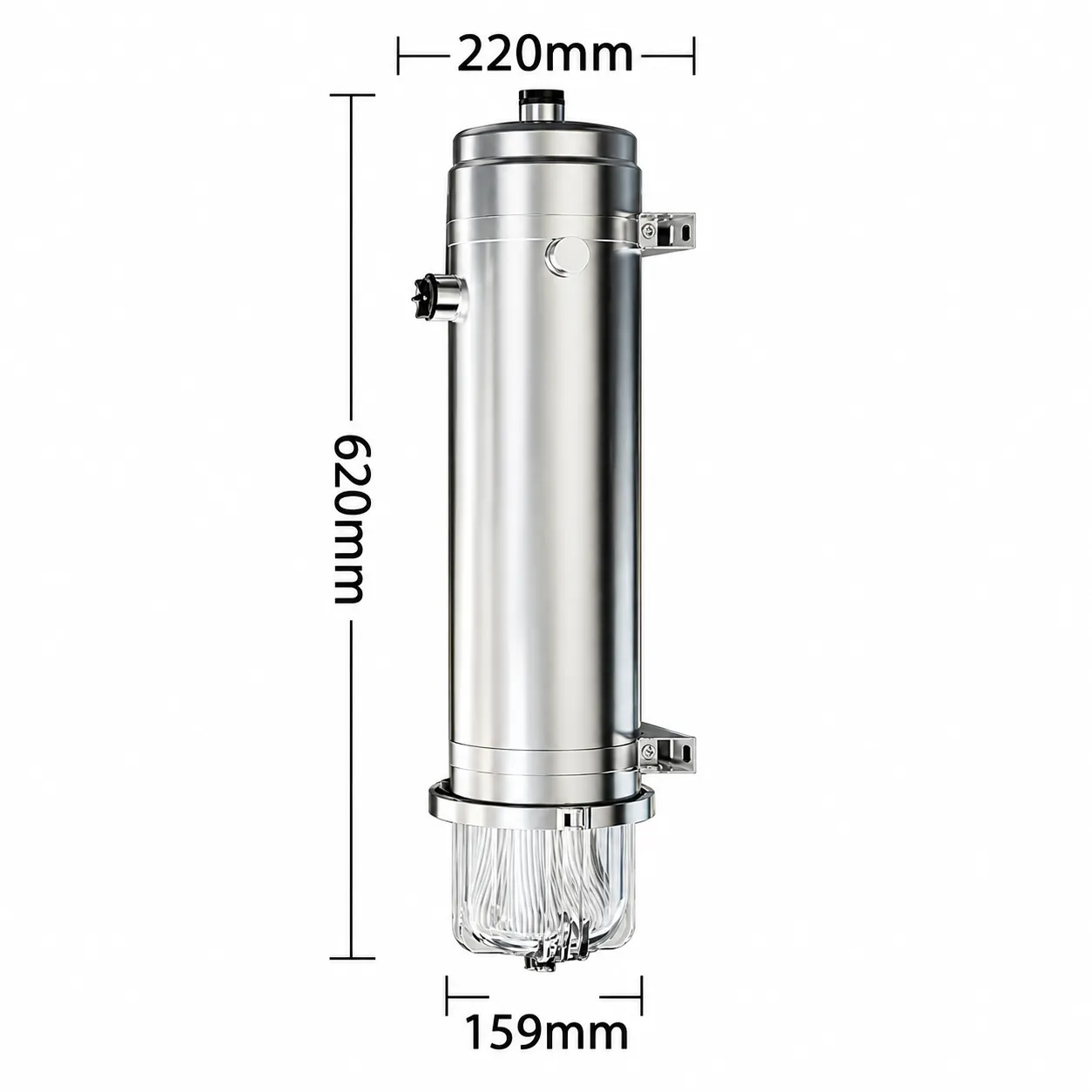

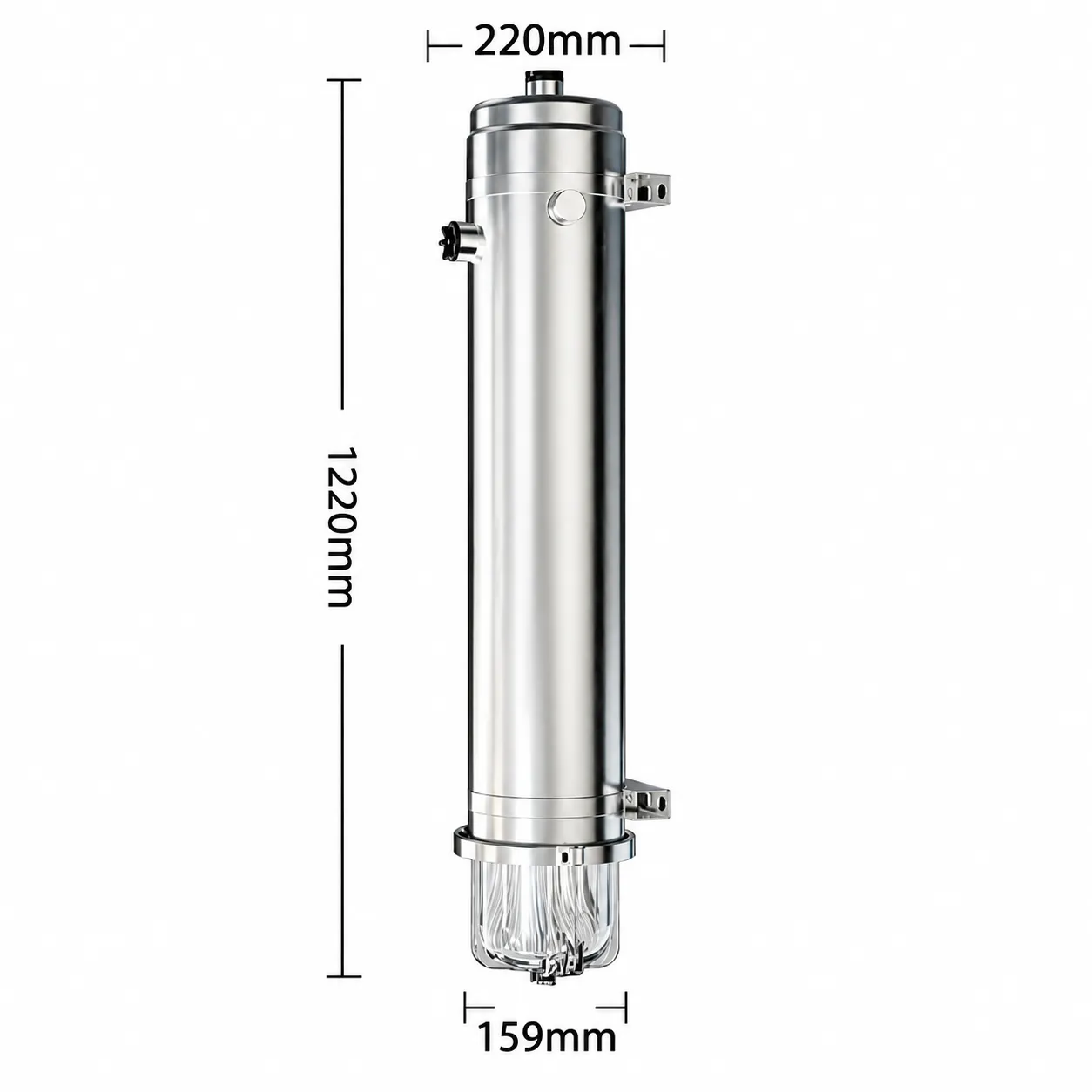

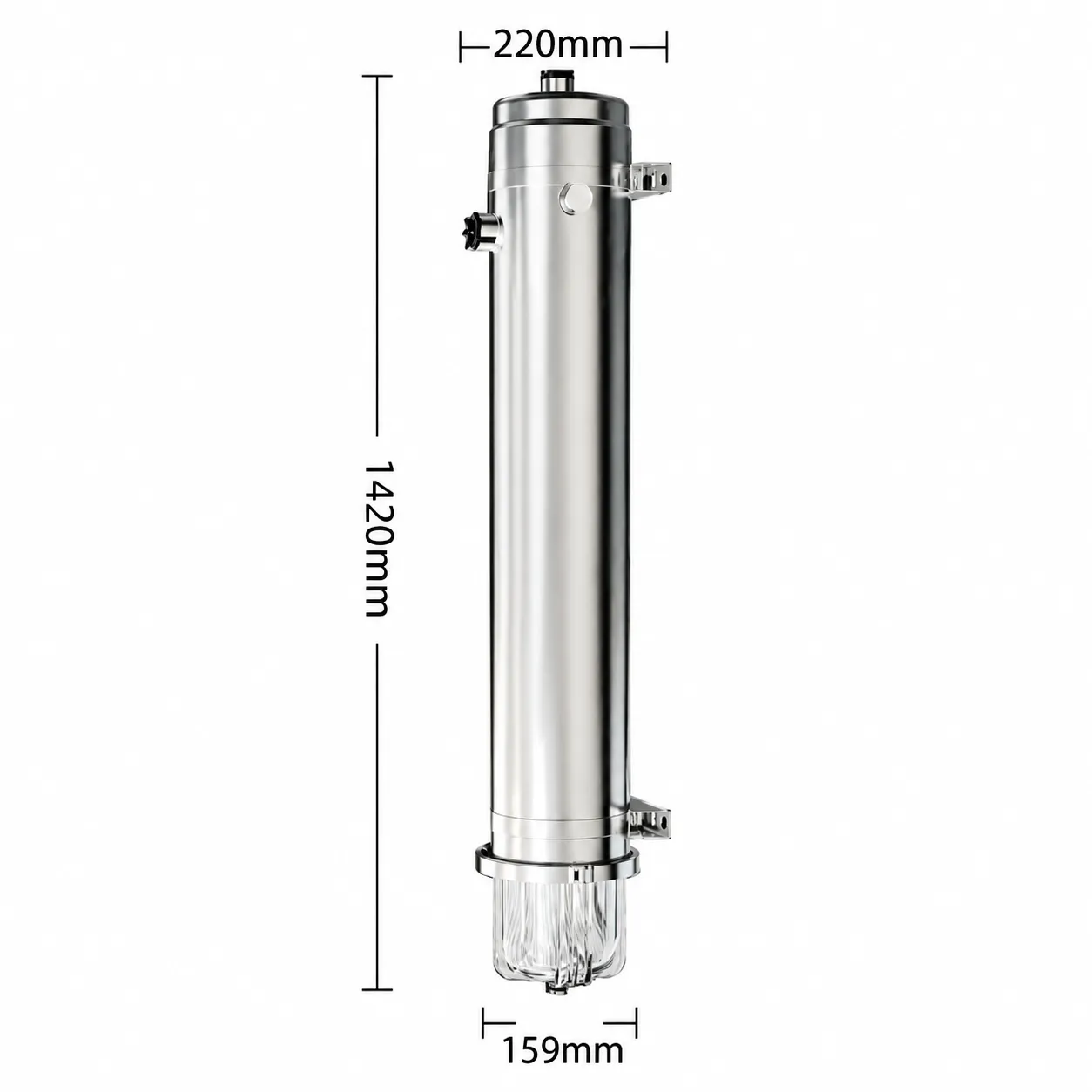

Product Size 159 × 220 × 620 mm 159 × 220 × 920 mm 159 × 220 × 1,020 mm 159 × 220 × 1,220 mm 159 × 220 × 1,420 mm
Main Body Diameter 159 mm 159 mm 159 mm 159 mm 159 mm
Maximum Width 220 mm 220 mm 220 mm 220 mm 220 mm
Membrane Cartridge Size 159 × 500 mm 159 × 800 mm 159 × 900 mm 159 × 1,100 mm 159 × 1,300 mm
Membrane Type Washable PVDF UF Membrane Washable PVDF UF Membrane Washable PVDF UF Membrane Washable PVDF UF Membrane Washable PVDF UF Membrane
Housing Structure Vertical Stainless Steel Vertical Stainless Steel Vertical Stainless Steel Vertical Stainless Steel Vertical Stainless Steel
Maintenance Structure Quick-Release Clamp Quick-Release Clamp Quick-Release Clamp Quick-Release Clamp Quick-Release Clamp
Visual Section Yes Yes Yes Yes Yes
Connection Size 1″ Internal / 1/2″ Male 1″ Internal / 1/2″ Male 1″ Internal / 1/2″ Male 1″ Internal / 1/2″ Male 1″ Internal / 1/2″ Male
Custom Connection Available Available Available Available Available

Product usage scenarios

Designed for high-flow residential whole-house water filtration, Banott's 159 Series visual quick-release clamp UF purifier combines a washable PVDF membrane, enlarged stainless steel housing and up to 15,000 L/H filtration capacity. It is suitable for:

  • Medium-Sized Residential Homes

  • Villas & Detached Houses

  • Large Residential Properties

  • Self-Built Houses

  • Residential Water Pretreatment

  • Utility Rooms & Centralized Water Systems
