The Vertical Stainless Steel PVC Ultrafiltration Water Purifier is designed for residential, whole-house and selected light-commercial water filtration applications. Featuring a PVC ultrafiltration membrane, durable stainless steel housing and integrated pressure gauge, the series provides multiple flow capacities from 1,000 L/H to 20,000 L/H. Three housing platforms—102 Series, 159 Series and 203 Series—allow customers to select a suitable configuration according to water demand, property size and piping requirements. Connection sizes range from 1/2-inch male thread to 2-inch internal thread, with customized connections available for bulk orders.

Product Description:

Water filtration requirements can vary significantly between a small kitchen system, a villa and a high-demand commercial facility. Banott’s vertical PVC ultrafiltration purifier series provides a broad capacity range within the same stainless steel filtration platform.

The system uses an internal PVC ultrafiltration membrane cartridge housed inside a vertical stainless steel body. Incoming water passes through the membrane filtration stage before continuing to household water points or downstream treatment equipment.

The series is available in three main housing sizes:

  • 102 Series: 1,000–2,000 L/H
  • 159 Series: 3,000–10,000 L/H
  • 203 Series: 15,000–20,000 L/H

An integrated pressure gauge on the larger configurations provides a convenient visual reference for operating conditions, while the removable top housing structure allows access to the internal membrane cartridge during servicing.

Product Advantage:

·Wide Flow Range: Multiple configurations from 1,000 L/H to 20,000 L/H cover kitchen, residential, villa and higher-demand filtration applications.

·PVC Ultrafiltration Membrane: The internal PVC UF membrane provides physical filtration for suspended and particulate impurities in incoming water.

·Stainless Steel Housing: The vertical stainless steel body provides durable protection for the membrane cartridge and a clean installation appearance.

·Integrated Pressure Monitoring: Selected models include a front-mounted pressure gauge for convenient observation of system operating pressure.

·Three Housing Platforms: 102, 159 and 203 Series housings provide different capacities and connection specifications for different project requirements.

·Flexible Connection Sizes: Standard connections range from 1/2-inch male thread to 2-inch internal thread, with customized connection options available for bulk orders.

Get Free Quote

Product Specifications

Model Rated Flow Product Size Membrane Cartridge Connection
Vertical 102-1T 1,000 L/H 102 × 150 × 350 mm 102 × 220 mm 1/2″ Male Thread

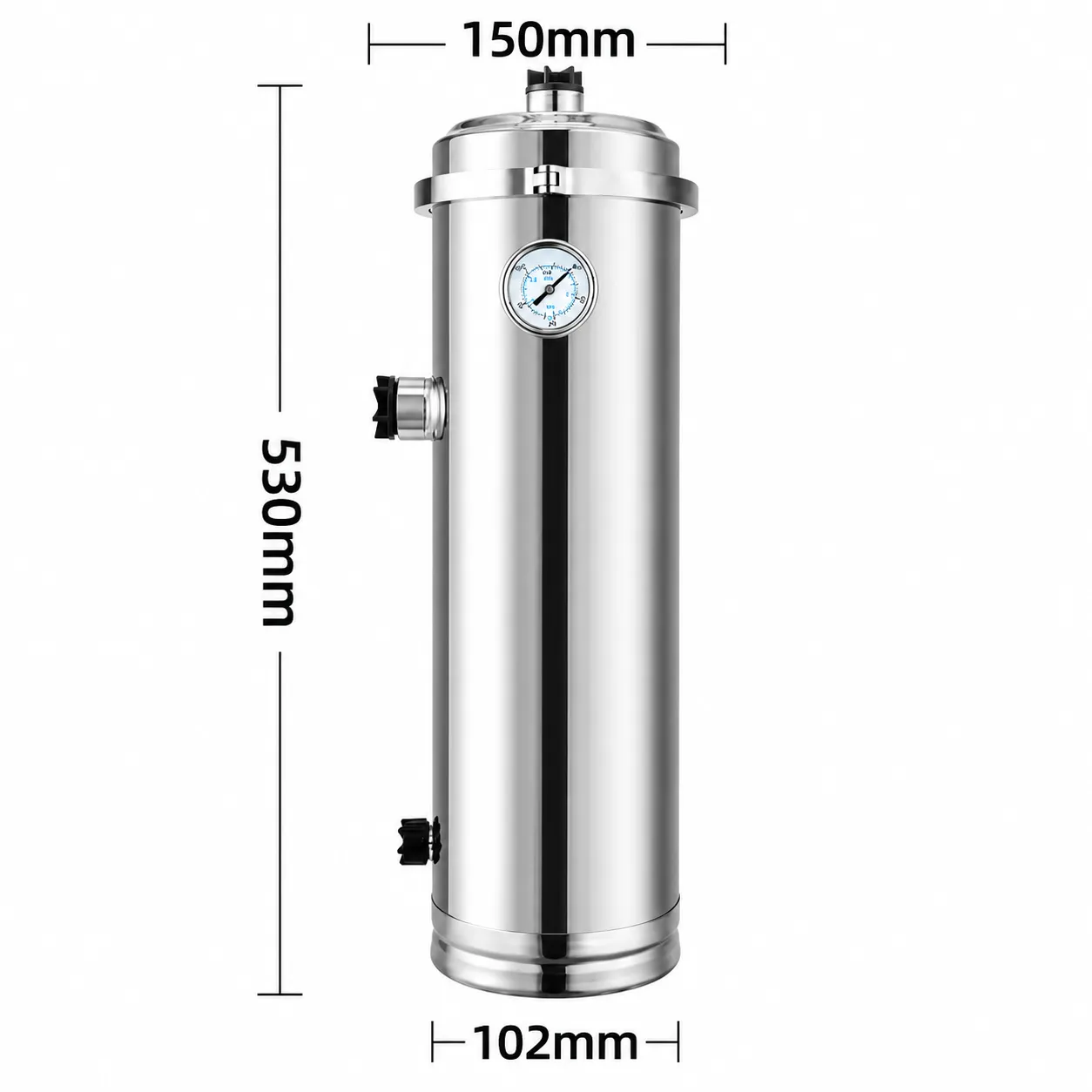

Vertical 102-2T 2,000 L/H 102 × 150 × 530 mm 102 × 350 mm 1/2″ Male Thread

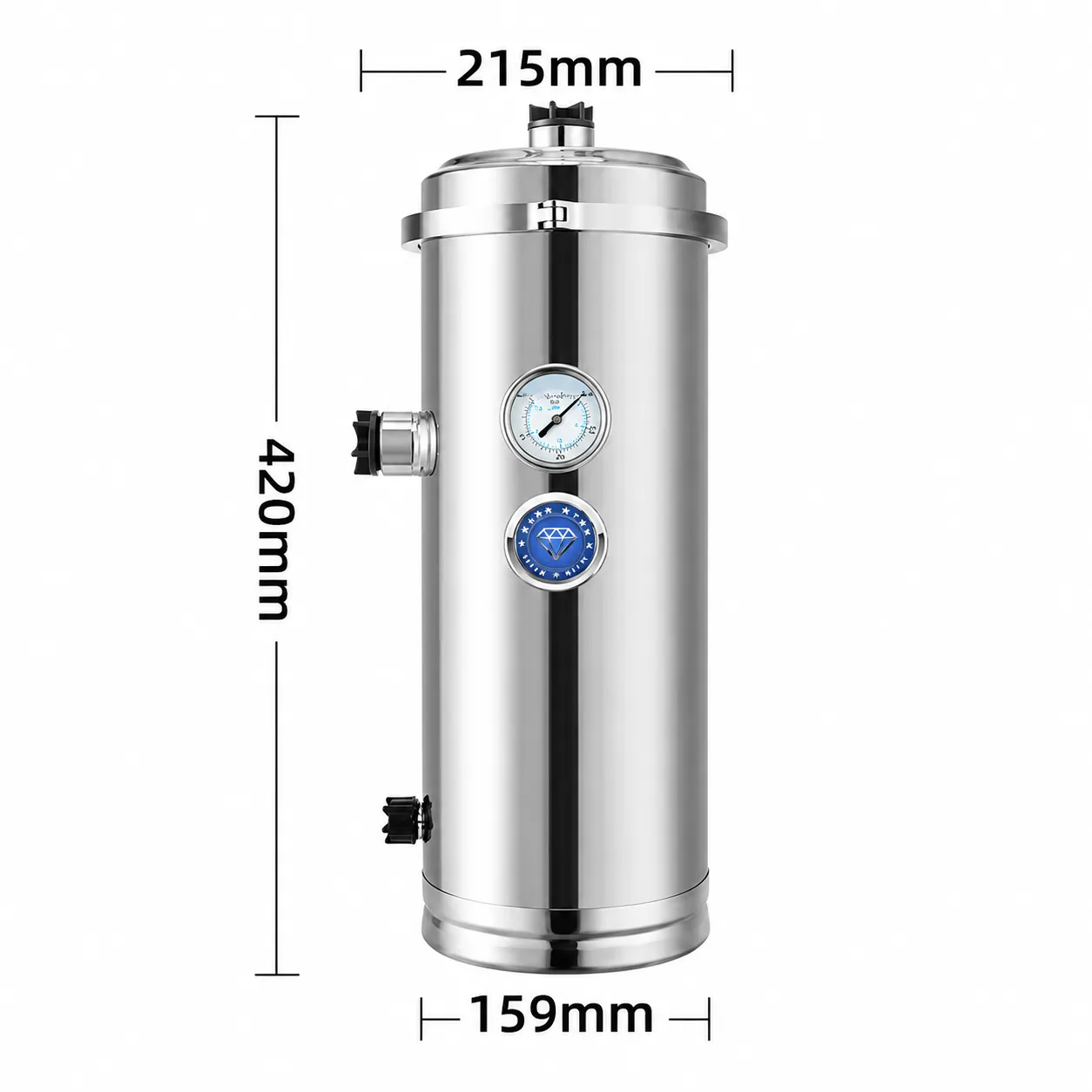

Vertical 159-3T 3,000 L/H 159 × 215 × 420 mm 159 × 270 mm 1″ Internal Thread

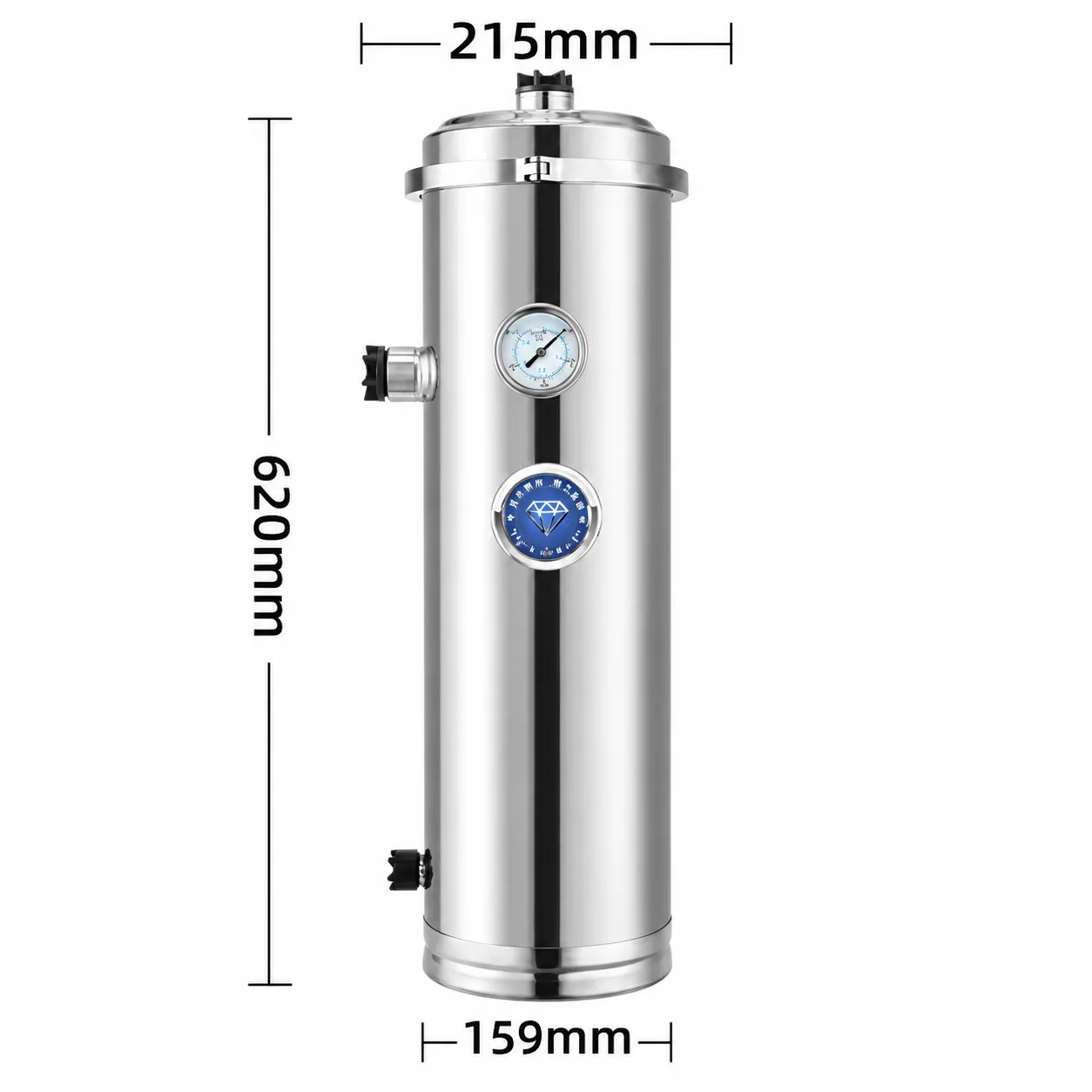

Vertical 159-5T 5,000 L/H 159 × 215 × 620 mm 159 × 370 mm 1″ Internal Thread

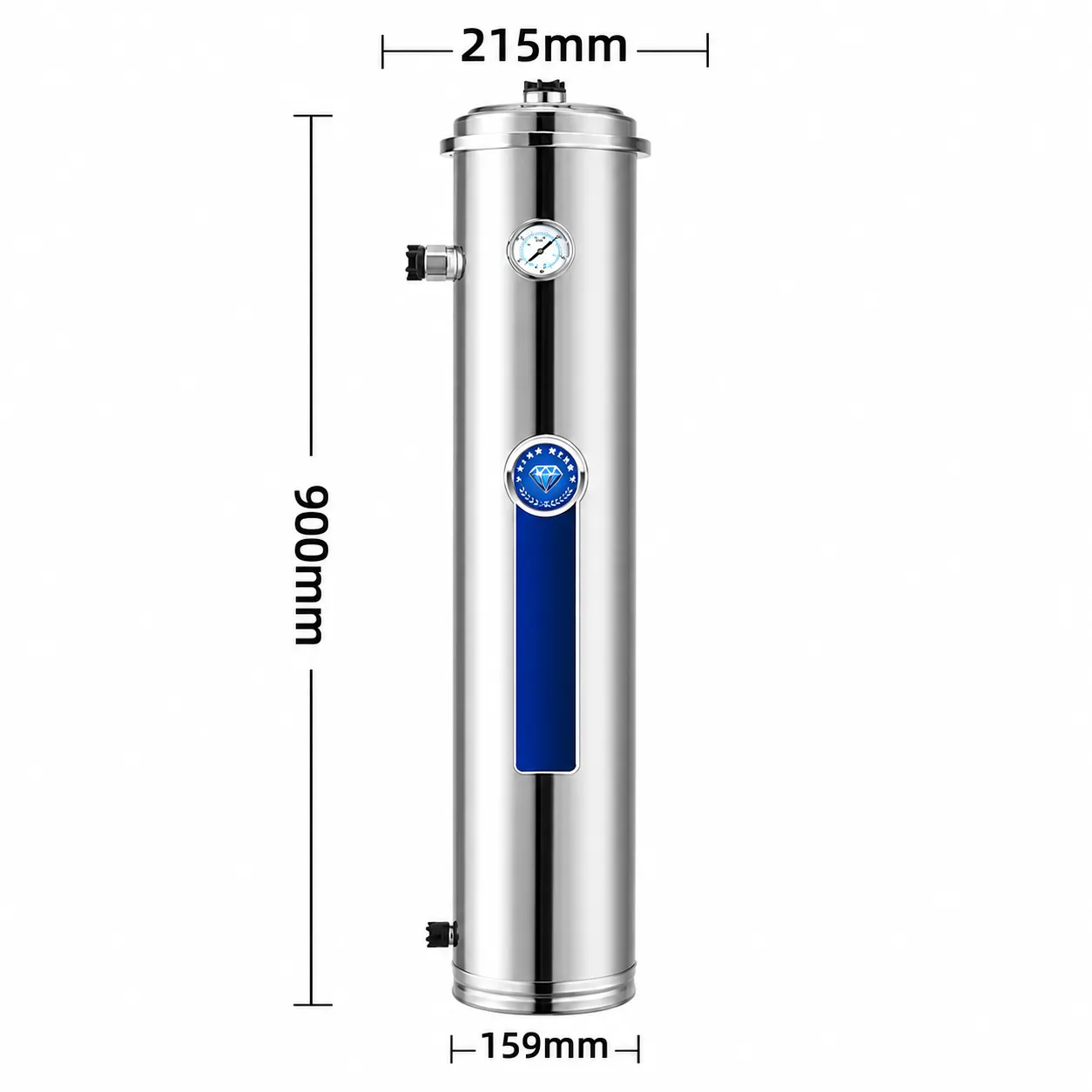

Vertical 159-8T 8,000 L/H 159 × 215 × 900 mm 159 × 670 mm 1″ Internal Thread

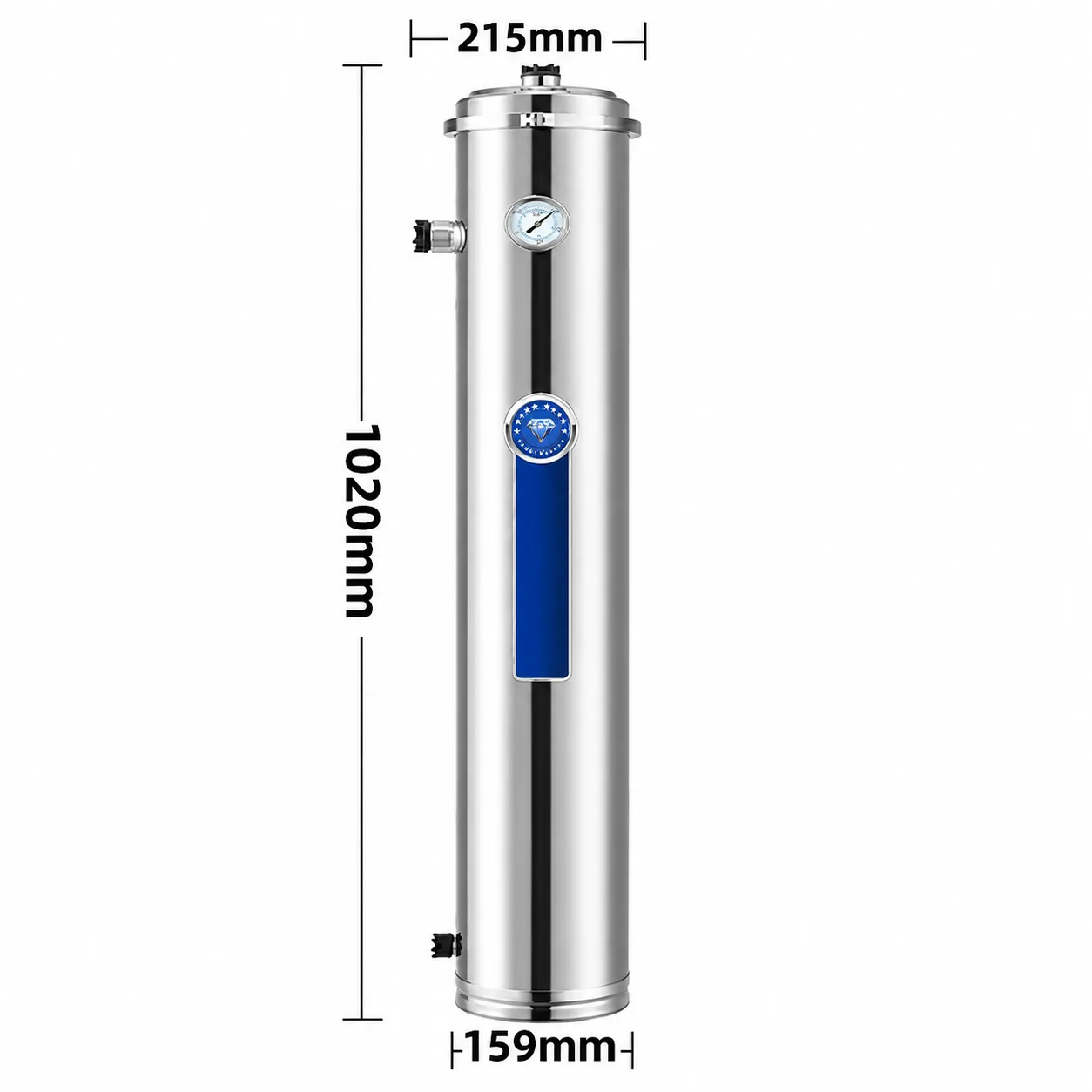

Vertical 159-10T 10,000 L/H 159 × 215 × 1,020 mm 159 × 800 mm 1″ Internal Thread

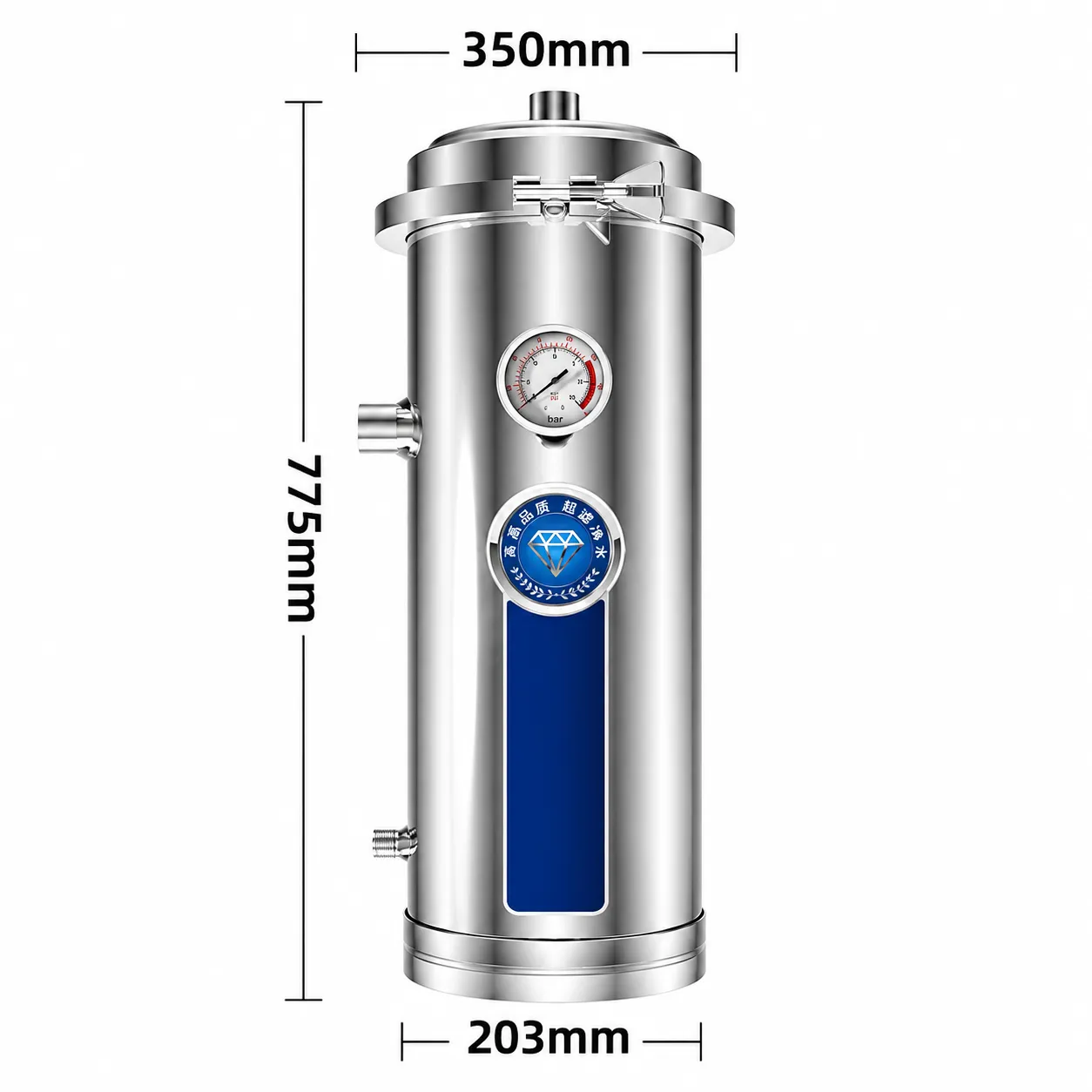

Vertical 203-15T 15,000 L/H 203 × 350 × 775 mm 203 × 510 mm 1.5″ Internal Thread

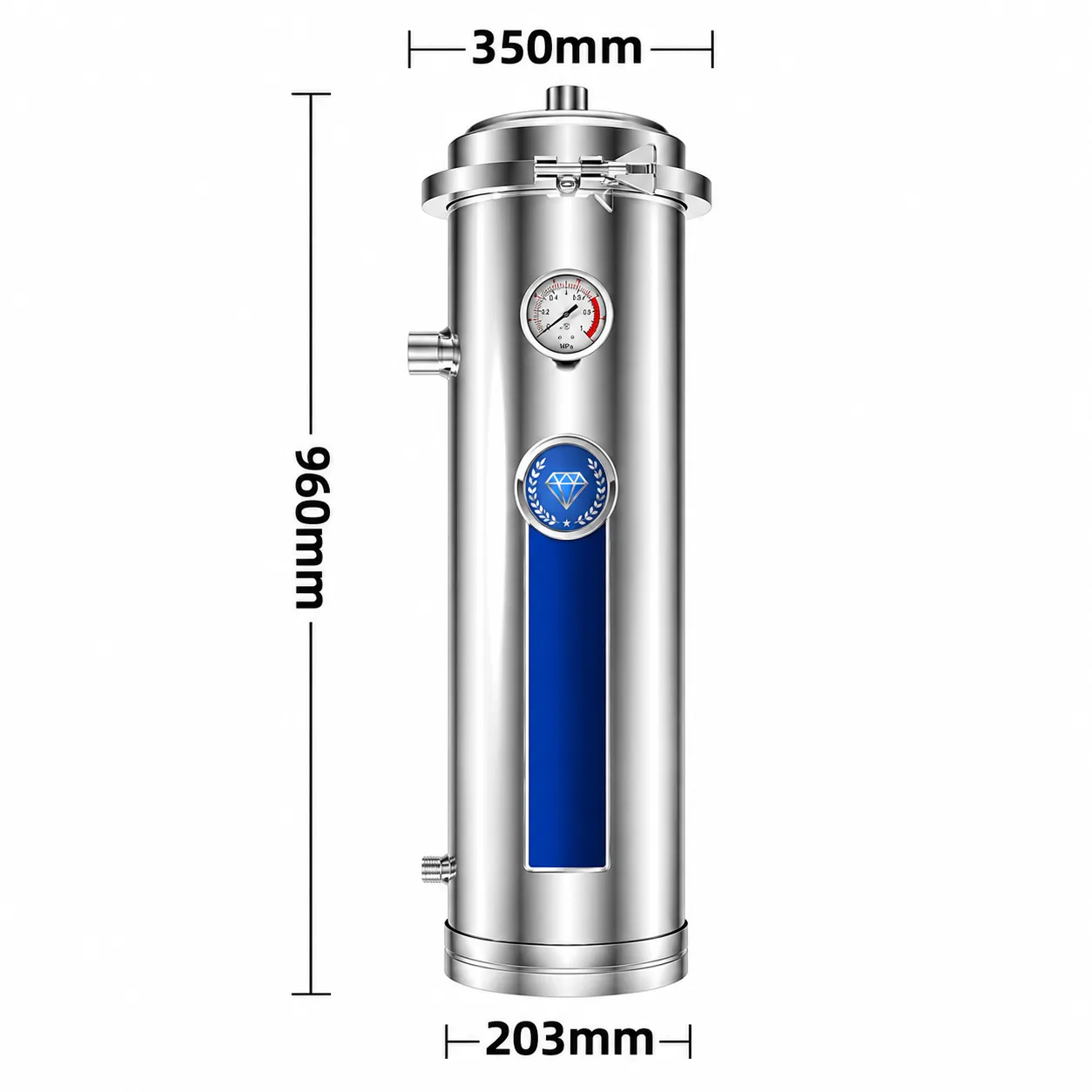

Vertical 203-20T 20,000 L/H 203 × 350 × 960 mm 203 × 750 mm 2″ Internal Thread

Product usage scenarios

Designed for residential, whole-house and selected light-commercial water filtration, Banott's vertical PVC UF purifier series combines a stainless steel housing, PVC ultrafiltration membrane and a broad 1,000–20,000 L/H capacity range. It is suitable for:

  • Household Kitchen Water Filtration

  • Small & Medium Residential Homes

  • Villas & Large Residences

  • Hotels & Canteens

  • High-Flow Project Applications

  • Residential & Commercial Pretreatment
